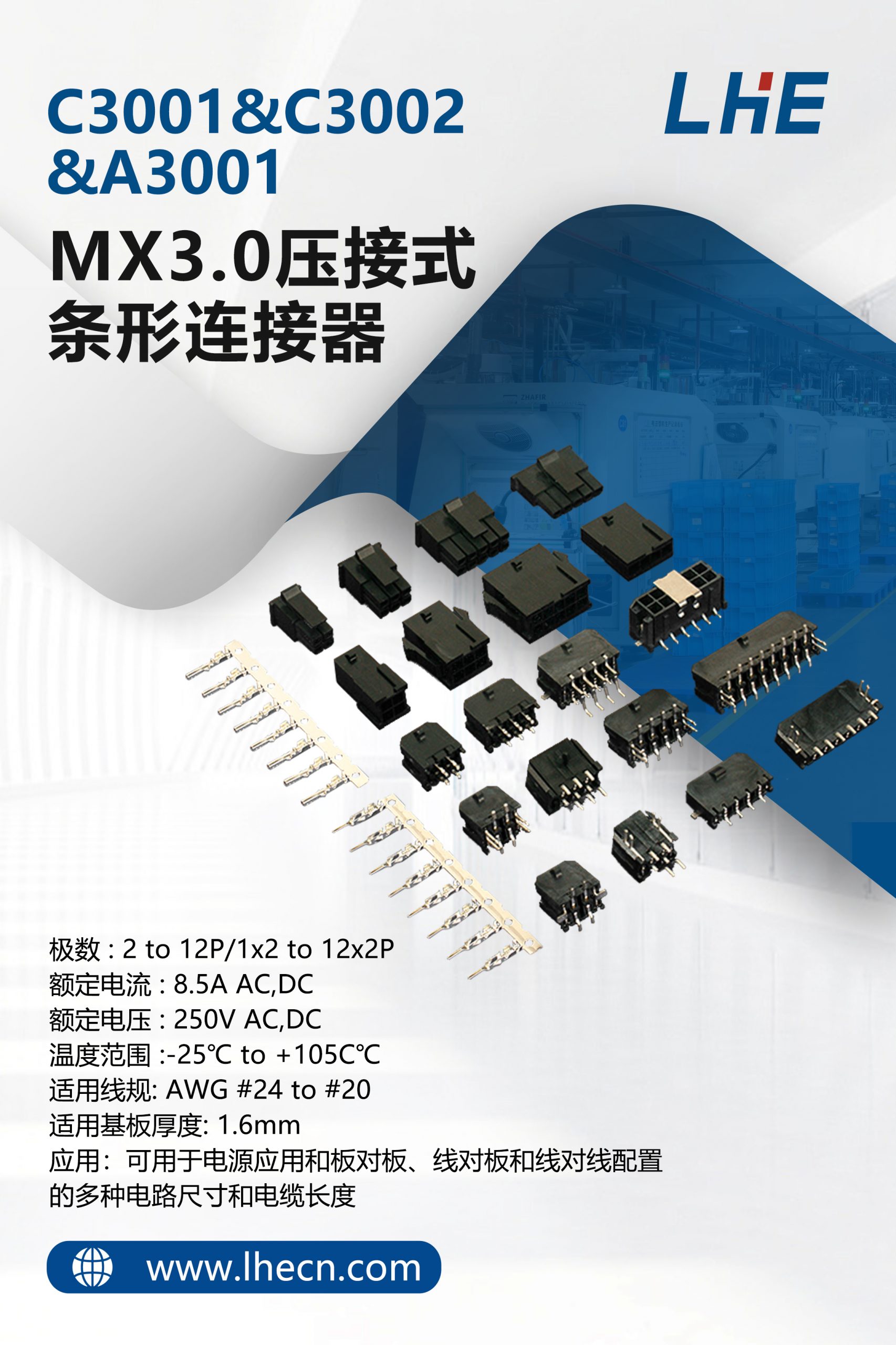

今日推荐丨MX3.0 (C3001&C3002&A3001)压接式条形连接器

极数 Poles:2 to 12P/1×2 to 12x2P

额定电流 Current rating:8.5A AC,DC

额定电压 Voltage rating:250V AC,DC

温度范围 Temperature range:-25℃ to +105℃

接触电阻 Contact resistance:<15mΩ

绝缘电阻Insulation resistance:>1000MΩ

耐电压 Withstand voltage:1500V AC/minute

适用线规 Applicable wire: AWG #24 to #20

适用基板厚度(Applicable PC board thickness):1.6 mm
