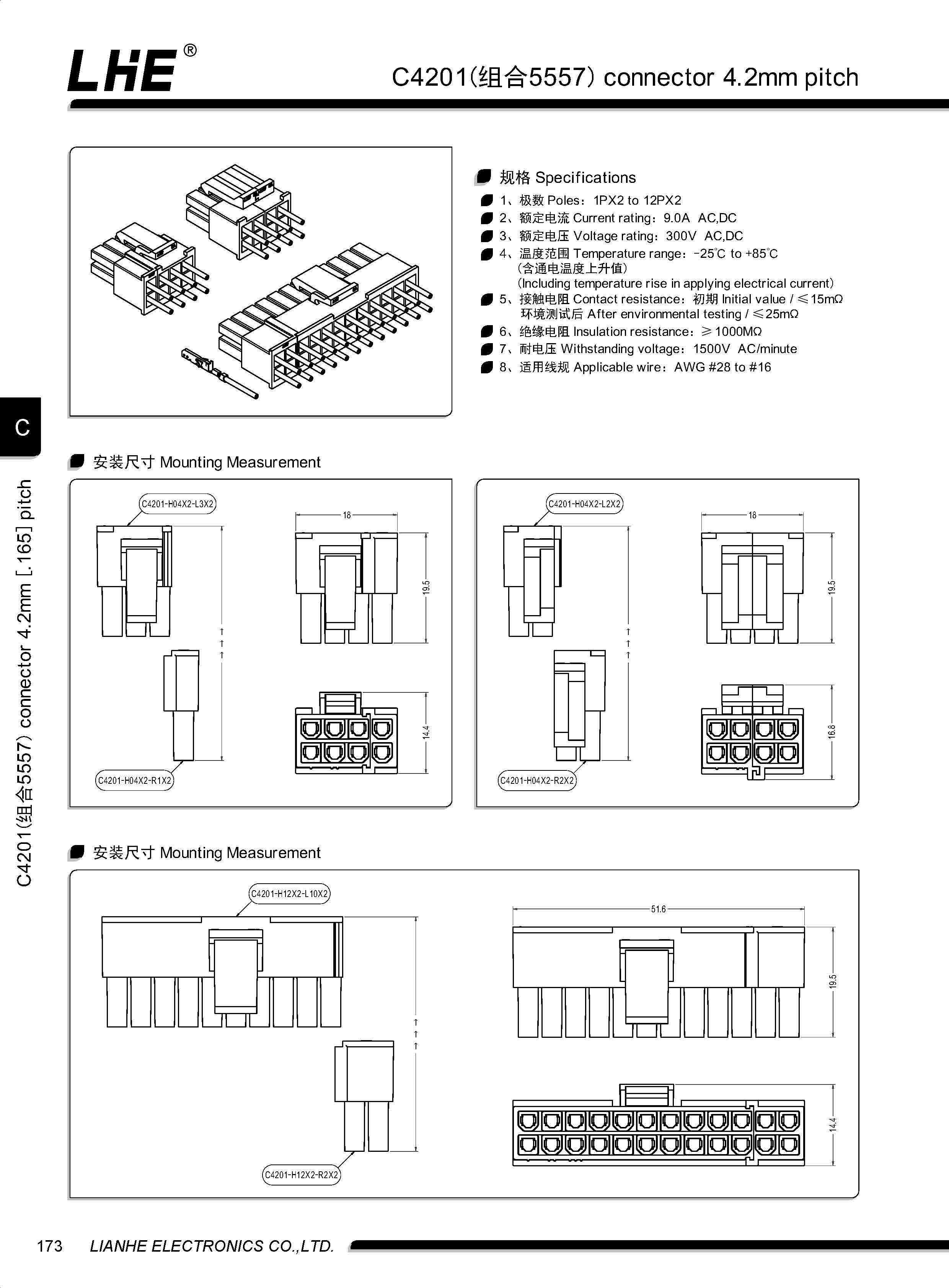

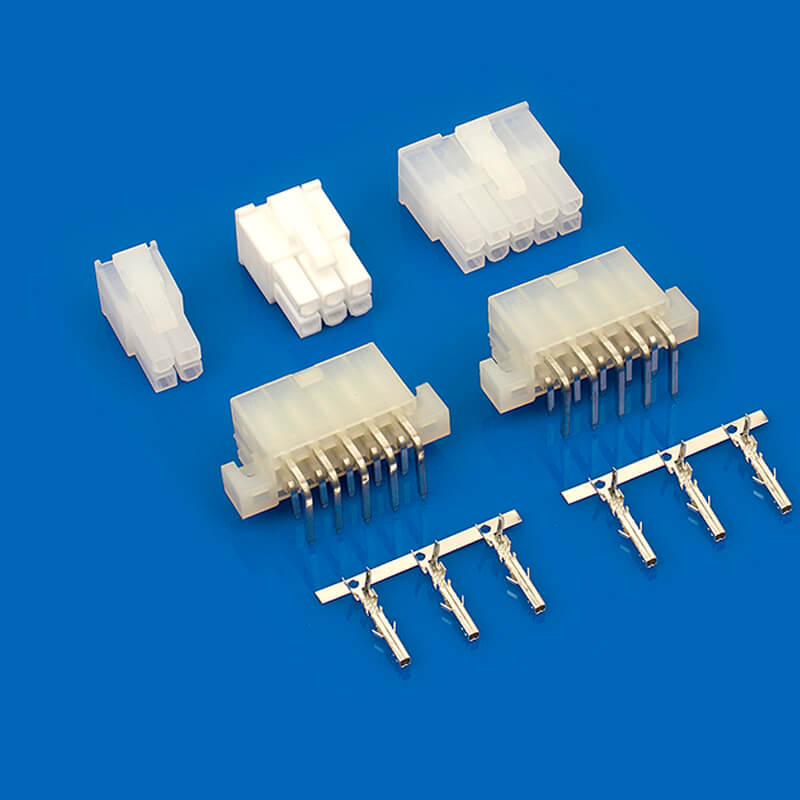

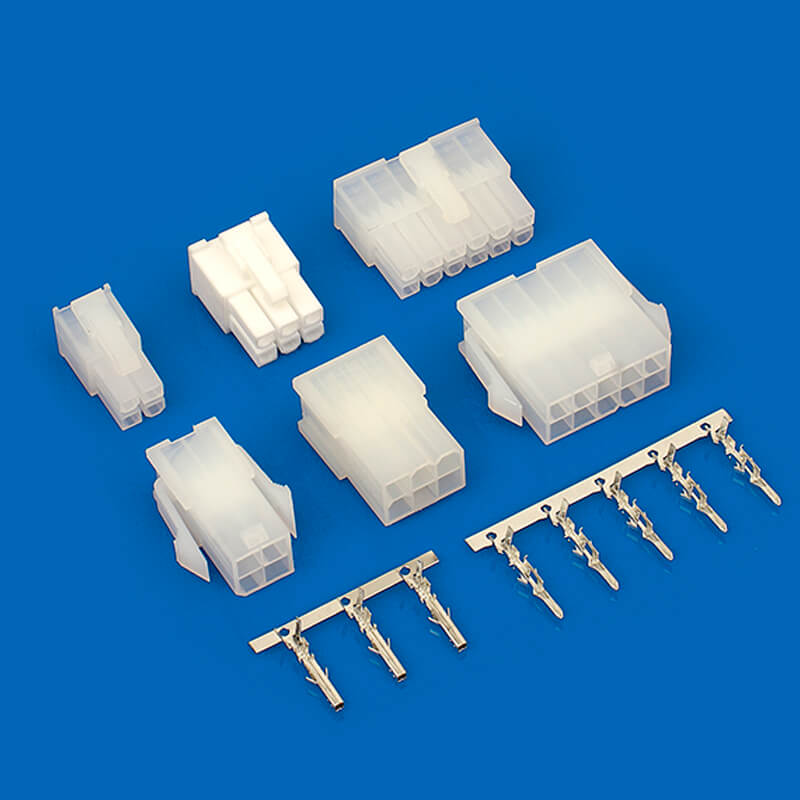

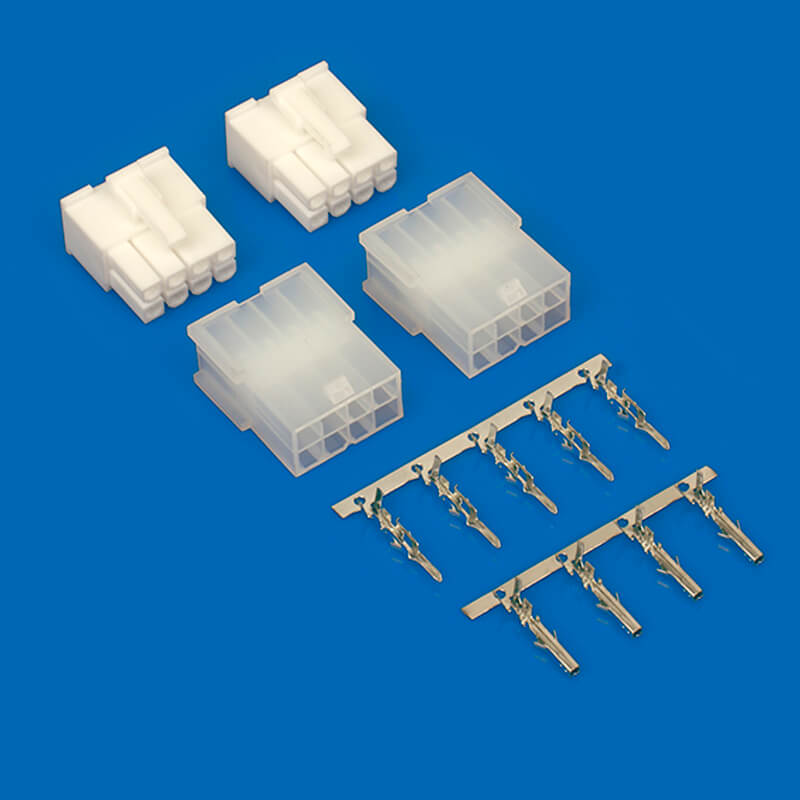

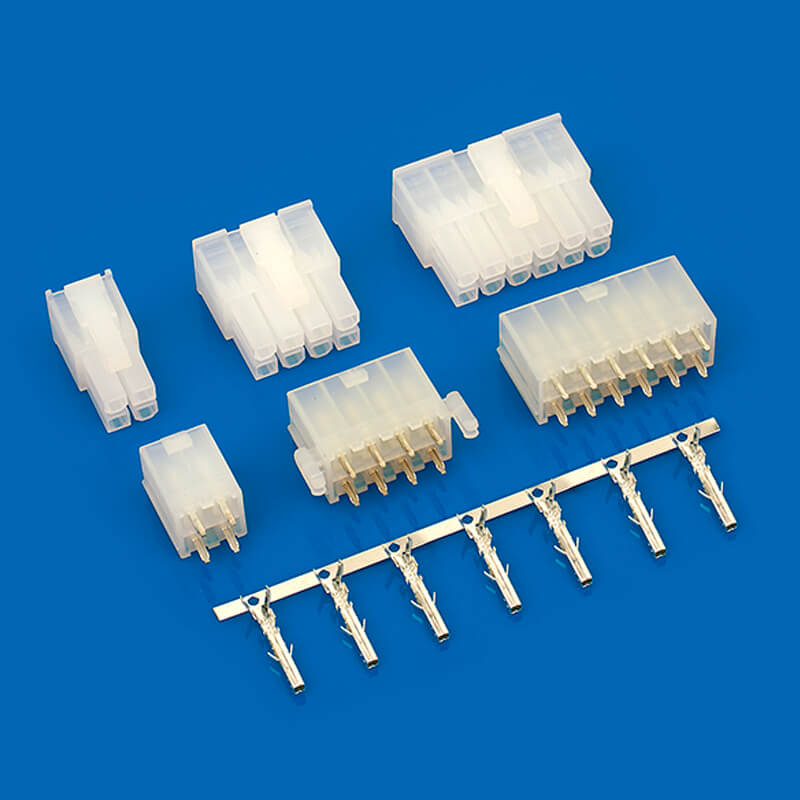

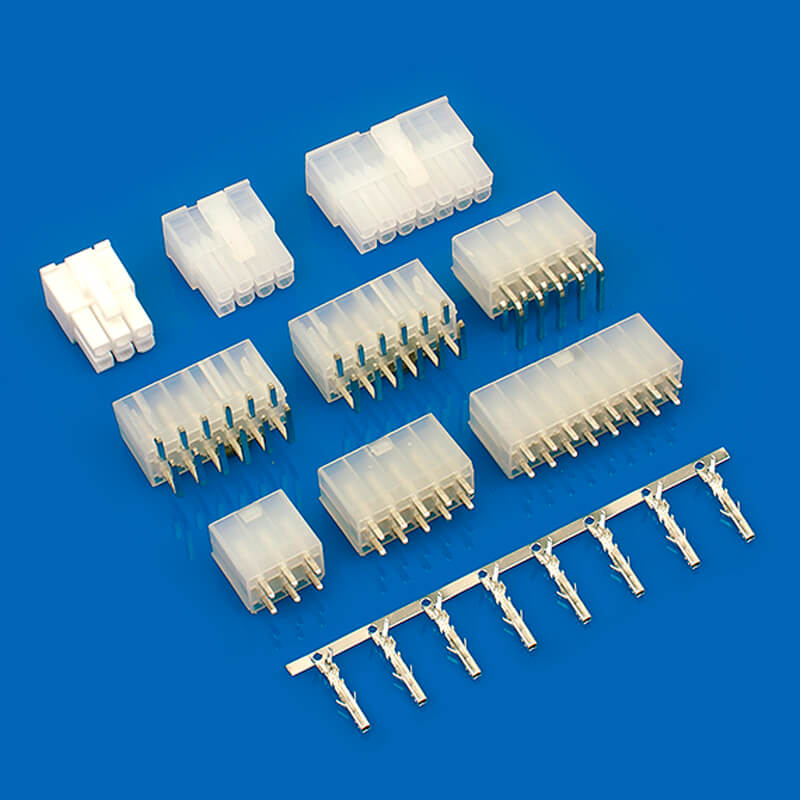

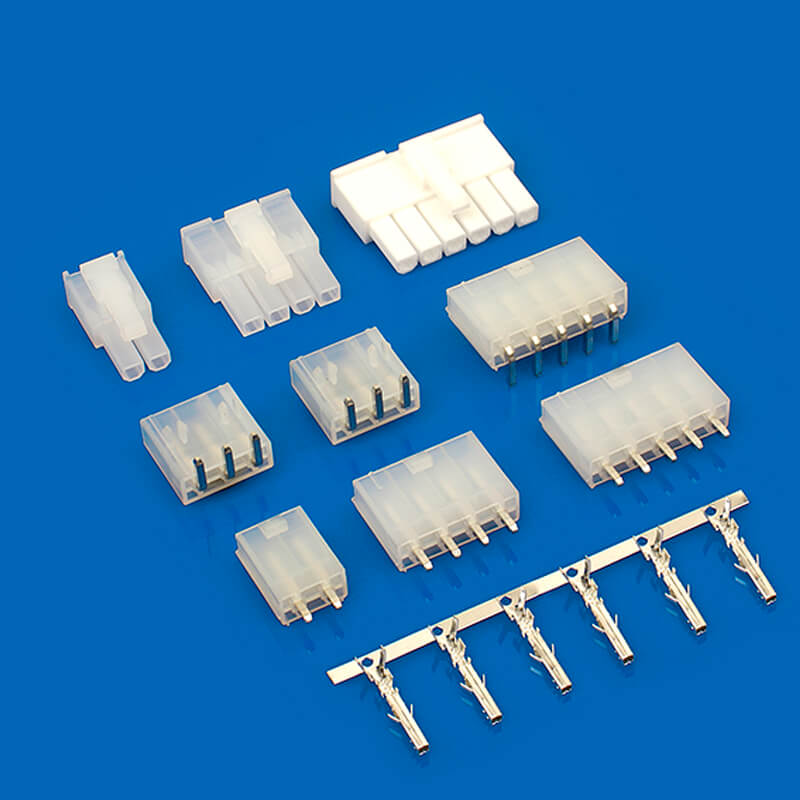

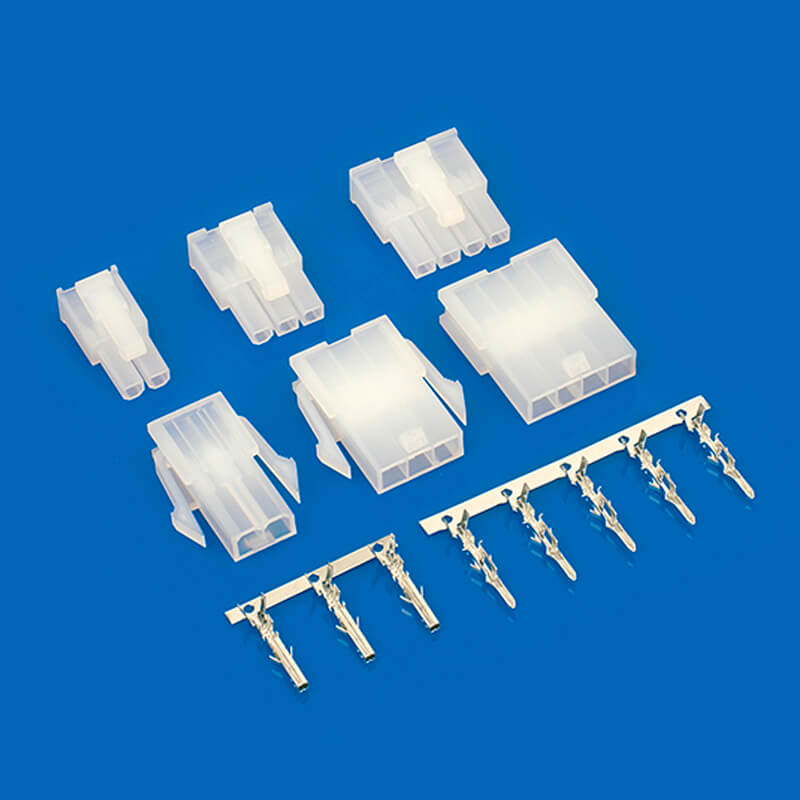

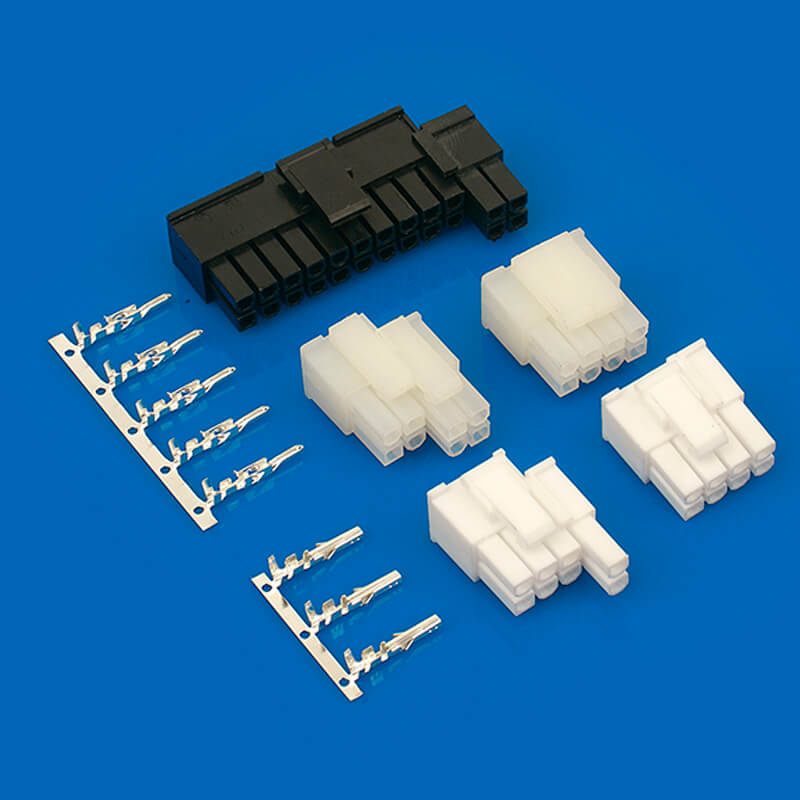

C4201&C4202(5557&5559) Connector 4.2mm Pitch C4201&C4202(5557&5559) Connector 4.2mm Pitch C4201&C4202(5557&5559) Connector 4.2mm Pitch C4201&C4202(5557&5559) Connector 4.2mm Pitch C4201&C4202(5557&5559) Connector 4.2mm Pitch C4201&C4202(5557&5559) Connector 4.2mm Pitch C4201&C4202(5557&5559) Connector 4.2mm Pitch C4201&C4202(5557&5559) Connector 4.2mm Pitch
询问报价 申请样品
PDF规格（PDF）

产品 & 分类

属性

Specification

系列

Series

C4201&C4202 Series
间距

Pitch

4.2mm
孔位数

No.of Contacts

02 to 06,02X2 to 02X12 position
电流

Current

9A (AWG16 to 28)
兼容性

Compatible

Cross MOLEX MINI-FIT 4.2 Connector Series
