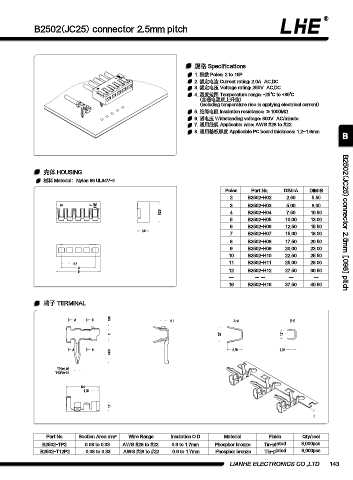

B2502(JC25) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 绝缘电阻 Insulation resistance: ≥1000MΩ
6. 耐电压 Withstanding voltage: 800V AC/minute
7. 适用线规 Applicable wire: AWG #28 to #22
8. 适用基板厚度 Applicable PC board thickness: 1.2~1.6mm
B

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 B2502-H02 2.50 5.50
3 B2502-H03 5.00 8.00
6.25 4 B2502-H04 7.50 10.50
5 B2502-H05 10.00 13.00
6 B2502-H06 12.50 15.50 B2502(JC25) connector 2.5mm [.098] pitch
3.5
7 B2502-H07 15.00 18.00
8 B2502-H08 17.50 20.50
9 B2502-H09 20.00 23.00
10 B2502-H10 22.50 25.50
2.5 11 B2502-H11 25.00 28.00
A
B 12 B2502-H12 27.50 30.50
-- -- -- -- --
16 B2502-H16 37.50 40.50

端子 TERMINAL

0.35
A B 0.6 A-A B-B

2 2.7 1.7

A B 2.55 1.35
3.95

TP2= 1.05
T12P2=1.2

5.6
1.25

1.7

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
B2502-TP2 0.08 to 0.33 AWG #28 to #22 0.9 to 1.7mm Phosphor bronze Tin-plated 8,000pcs
B2502-T12P2 0.08 to 0.33 AWG #28 to #22 0.9 to 1.7mm Phosphor bronze Tin-plated 8,000pcs

LIANHE ELECTRONICS CO.,LTD. 143
