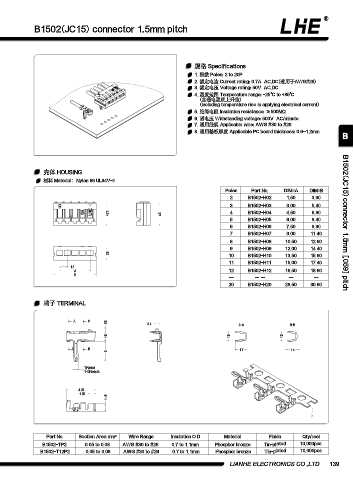

B1502(JC15) connector 1.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 20P
2. 额定电流 Current rating: 0.7A AC,DC(适用于AWG#26)
3. 额定电压 Voltage rating: 50V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 绝缘电阻 Insulation resistance: ≥500MΩ
6. 耐电压 Withstanding voltage: 500V AC/minute
7. 适用线规 Applicable wire: AWG #30 to #26
8. 适用基板厚度 Applicable PC board thickness: 0.6~1.2mm
B

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 B1502-H02 1.50 3.90
3 B1502-H03 3.00 5.40
4.75 4.5 4 B1502-H04 4.50 6.90
5 B1502-H05 6.00 8.40
6 B1502-H06 7.50 9.90 B1502(JC15) connector 1.5mm [.059] pitch
7 B1502-H07 9.00 11.40
8 B1502-H08 10.50 12.90
9 B1502-H09 12.00 14.40
2.6 10 B1502-H10 13.50 15.90
11 B1502-H11 15.00 17.40
1.5
A 12 B1502-H12 16.50 18.90
B
-- -- -- -- --
20 B1502-H20 28.50 30.90

端子 TERMINAL

A B 0.3 0.4 A-A B-B

1.5 1.6 1.5

A B 1.7 1.4
3

TP2= 0.8
T12P2=0.66

4.25
1.15
1.15

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
B1502-TP2 0.05 to 0.08 AWG #30 to #26 0.7 to 1.1mm Phosphor bronze Tin-plated 10,000pcs
B1502-T12P2 0.05 to 0.08 AWG #30 to #26 0.7 to 1.1mm Phosphor bronze Tin-plated 10,000pcs

LIANHE ELECTRONICS CO.,LTD. 139
