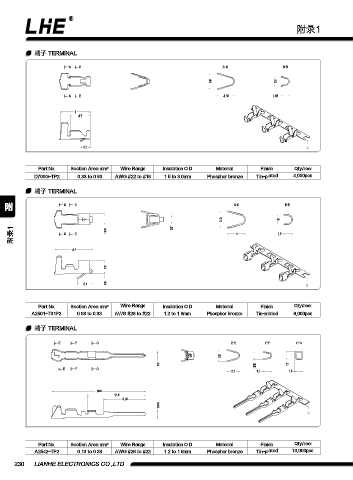

Page 242 - 浙江联和电子有限公司目录 2020-04-20

}
附录1

端子 TERMINAL

A B A-A B-B

3.9 2.4

A B 4.15 1.95

7
4.7

2.3

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
D700G-TP2 0.33 to 0.83 AWG #22 to #18 1.5 to 3.0mm Phosphor bronze Tin-plated 4,000pcs

端子 TERMINAL
附 C D C-C D-D

2.9 1.8
附录1 C D 1.85 0.7 3 1.5

6.3

2.2

2.4 0.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2501-T31P2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 6,000pcs
端子 TERMINAL

E F G E-E F-F G-G
2.3
0.7 1.55 1.7
E F G
2.6 1.8 1.5

18.5
11.5
8.25
0.66

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2542-TP2 0.13 to 0.33 AWG #26 to #22 1.2 to 1.6mm Phosphor bronze Tin-plated 10,000pcs

230 LIANHE ELECTRONICS CO.,LTD.
