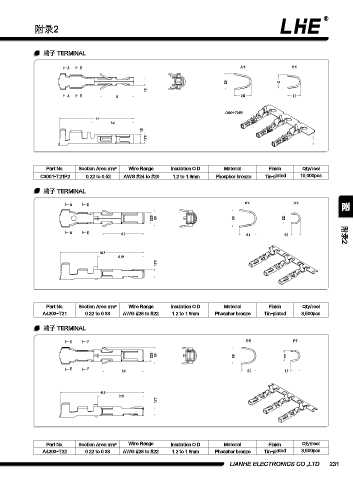

附录2

端子 TERMINAL

A B A-A B-B

2.4 2
1.2
A B 5 2.5 1.9

C3001-T21P2
11
6.4
1.3
1.75

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C3001-T21P2 0.22 to 0.52 AWG #24 to #20 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs

端子 TERMINAL

C D C-C D-D 附
2.25 3.3 3.5 2.2

C D
8.2 3.4 1.8 附录2

16.5
9.12
1.75

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A4203-T21 0.22 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 3,500pcs
端子 TERMINAL

E F E-E F-F
2.25 3.3 3.3 2.2

E F
8.2 2.9 1.8

16.5
9.12
1.75

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A4203-T22 0.22 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 3,500pcs

LIANHE ELECTRONICS CO.,LTD. 231
