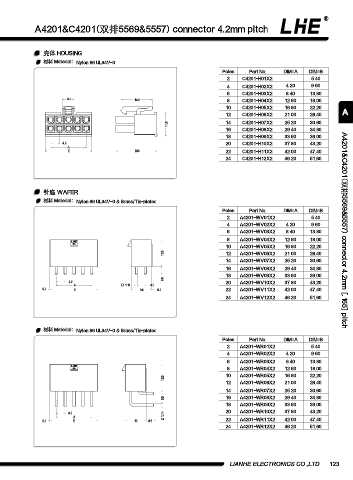

A4201&C4201(双排5569&5557) connector 4.2mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C4201-H01X2 5 . 4 0
4 C4201-H02X2 4.20 9.60
6 C4201-H03X2 8.40 13.80
5.3 14.8 8 C4201-H04X2 12.60 18.00
10 C4201-H05X2 16.80 22.20
12 C4201-H06X2 21.00 26.40 A
14 C4201-H07X2 25.20 30.60
11.6
16 C4201-H08X2 29.40 34.80
18 C4201-H09X2 33.60 39.00
4.2 20 C4201-H10X2 37.80 43.20
A
B 19.5 22 C4201-H11X2 42.00 47.40
24 C4201-H12X2 46.20 51.60

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A4201-WV01X2 5.40
4 A4201-WV02X2 4.20 9.60
6 A4201-WV03X2 8.40 13.80 A4201&C4201(双排5569&5557) connector 4.2mm [.165] pitch
8 A4201-WV04X2 12.60 18.00
10 A4201-WV05X2 16.80 22.20
12.8 12 A4201-WV06X2 21.00 26.40
14 A4201-WV07X2 25.20 30.60
16 A4201-WV08X2 29.40 34.80
18 A4201-WV09X2 33.60 39.00
3.6
4.2 20 A4201-WV10X2 37.80 43.20
A o 1.14 4.2
0.4 B 9.6 0.4 22 A4201-WV11X2 42.00 47.40
24 A4201-WV12X2 46.20 51.60

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A4201-WR01X2 5.40
4 A4201-WR02X2 4.20 9.60
6 A4201-WR03X2 8.40 13.80
8 A4201-WR04X2 12.60 18.00
10 A4201-WR05X2 16.80 22.20
13.3
12 A4201-WR06X2 21.00 26.40
14 A4201-WR07X2 25.20 30.60
5.5 16 A4201-WR08X2 29.40 34.80
18 A4201-WR09X2 33.60 39.00
20 A4201-WR10X2 37.80 43.20
4.2 1.14
A
0.4 B 10 3.6 o 22 A4201-WR11X2 42.00 47.40
24 A4201-WR12X2 46.20 51.60

LIANHE ELECTRONICS CO.,LTD. 123
