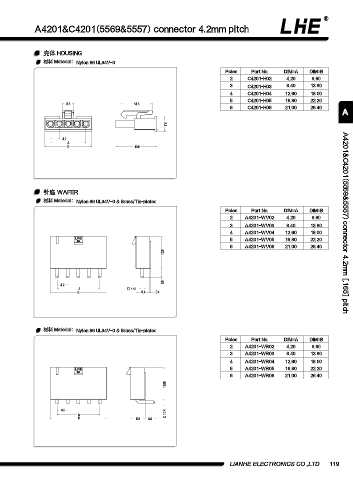

A4201&C4201(5569&5557) connector 4.2mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C4201-H02 4.20 9.60
3 C4201-H03 8.40 13.80
4 C4201-H04 12.60 18.00
5 C4201-H05 16.80 22.20
5.3 14.8
6 C4201-H06 21.00 26.40
A
7.4

4.2
A
B 19.5

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A4201-WV02 4.20 9.60
3 A4201-WV03 8.40 13.80 A4201&C4201(5569&5557) connector 4.2mm [.165] pitch
4 A4201-WV04 12.60 18.00
5 A4201-WV05 16.80 22.20
6 A4201-WV06 21.00 26.40
12.8

3.6
4.2
A o 1.14
B 5.4 0.4

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A4201-WR02 4.20 9.60
3 A4201-WR03 8.40 13.80
4 A4201-WR04 12.60 18.00
5 A4201-WR05 16.80 22.20
6 A4201-WR06 21.00 26.40
13.33

4.2 1.14
A o
B 5.8 3.6
