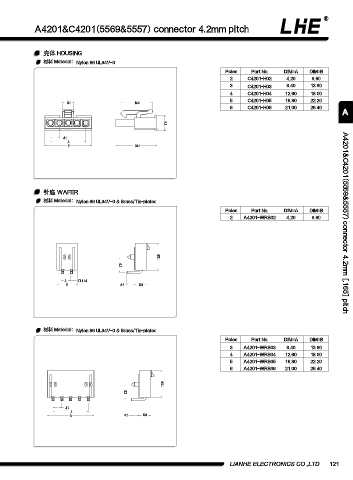

A4201&C4201(5569&5557) connector 4.2mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C4201-H02 4.20 9.60
3 C4201-H03 8.40 13.80
4 C4201-H04 12.60 18.00
5 C4201-H05 16.80 22.20
5.3 14.8
6 C4201-H06 21.00 26.40
A
7.4

4.2
A
B 19.5

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A4201-WRB02 4.20 9.60 A4201&C4201(5569&5557) connector 4.2mm [.165] pitch

12.8
7.3

A o 1.14
B 3.6 5.8

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
3 A4201-WRB03 8.40 13.80
4 A4201-WRB04 12.60 18.00
5 A4201-WRB05 16.80 22.20
6 A4201-WRB06 21.00 26.40

12.8
7.3

4.2
A
B 3.6 5.8
