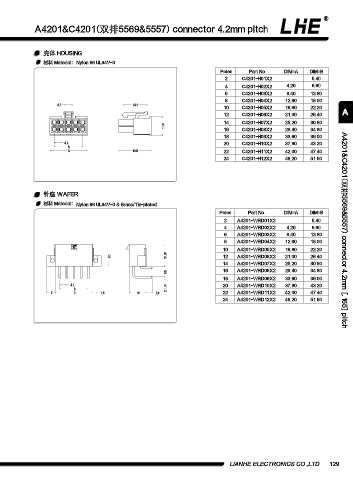

A4201&C4201(双排5569&5557) connector 4.2mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C4201-H01X2 5 . 4 0
4 C4201-H02X2 4.20 9.60
6 C4201-H03X2 8.40 13.80
8 C4201-H04X2 12.60 18.00
5.3 14.8
10 C4201-H05X2 16.80 22.20
12 C4201-H06X2 21.00 26.40 A
14 C4201-H07X2 25.20 30.60
11.6 16 C4201-H08X2 29.40 34.80
18 C4201-H09X2 33.60 39.00
4.2 20 C4201-H10X2 37.80 43.20
A
B 19.5 22 C4201-H11X2 42.00 47.40
24 C4201-H12X2 46.20 51.60

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated

Poles Part No. DIM=A DIM=B
2 A4201-WRD01X2 5.40
4 A4201-WRD02X2 4.20 9.60 A4201&C4201(双排5569&5557) connector 4.2mm [.165] pitch
6 A4201-WRD03X2 8.40 13.80
8 A4201-WRD04X2 12.60 18.00
10 A4201-WRD05X2 16.80 22.20
3.1 13.33 12 A4201-WRD06X2 21.00 26.40
14 A4201-WRD07X2 25.20 30.60
5.5 16 A4201-WRD08X2 29.40 34.80
18 A4201-WRD09X2 33.60 39.00
4.2 1.14 20 A4201-WRD10X2 37.80 43.20
A
5 B 1.8 10 3.6 o 22 A4201-WRD11X2 42.00 47.40
24 A4201-WRD12X2 46.20 51.60
