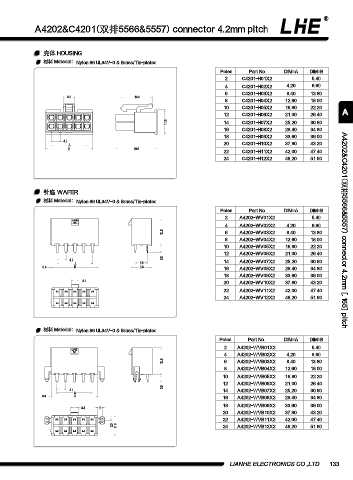

A4202&C4201(双排5566&5557) connector 4.2mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 C4201-H01X2 5 . 4 0
4 C4201-H02X2 4.20 9.60
6 C4201-H03X2 8.40 13.80
5.3 14.8
8 C4201-H04X2 12.60 18.00
10 C4201-H05X2 16.80 22.20
12 C4201-H06X2 21.00 26.40 A
11.6 14 C4201-H07X2 25.20 30.60
16 C4201-H08X2 29.40 34.80
18 C4201-H09X2 33.60 39.00
4.2
A 20 C4201-H10X2 37.80 43.20
B 19.5
22 C4201-H11X2 42.00 47.40
24 C4201-H12X2 46.20 51.60

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A4202-WV01X2 5.40
4 A4202-WV02X2 4.20 9.60
12.8 6 A4202-WV03X2 8.40 13.80 A4202&C4201(双排5566&5557) connector 4.2mm [.165] pitch
8 A4202-WV04X2 12.60 18.00
10 A4202-WV05X2 16.80 22.20
12 A4202-WV06X2 21.00 26.40
4.2 3.5 14 A4202-WV07X2 25.20 30.60
A 5.5
0.4 B 9.6 16 A4202-WV08X2 29.40 34.80
18 A4202-WV09X2 33.60 39.00
3.4
20 A4202-WV10X2 37.80 43.20
22 A4202-WV11X2 42.00 47.40
24 A4202-WV12X2 46.20 51.60

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A4202-WVB01X2 5.40
4 A4202-WVB02X2 4.20 9.60
12.8 6 A4202-WVB03X2 8.40 13.80
8 A4202-WVB04X2 12.60 18.00
10 A4202-WVB05X2 16.80 22.20
12 A4202-WVB06X2 21.00 26.40
3.5
4.2 14 A4202-WVB07X2 25.20 30.60
A
0.4 B 16 A4202-WVB08X2 29.40 34.80
18 A4202-WVB09X2 33.60 39.00
3.4 2
20 A4202-WVB10X2 37.80 43.20
22 A4202-WVB11X2 42.00 47.40
2.3 9.6 24 A4202-WVB12X2 46.20 51.60
