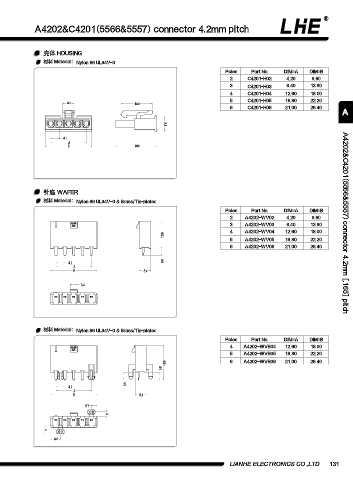

A4202&C4201(5566&5557) connector 4.2mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C4201-H02 4.20 9.60
3 C4201-H03 8.40 13.80
4 C4201-H04 12.60 18.00
5 C4201-H05 16.80 22.20
5.3 14.8
6 C4201-H06 21.00 26.40
A
7.4

4.2
A
B 19.5

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A4202-WV02 4.20 9.60
3 A4202-WV03 8.40 13.80 A4202&C4201(5566&5557) connector 4.2mm [.165] pitch
4 A4202-WV04 12.60 18.00
12.8
5 A4202-WV05 16.80 22.20
6 A4202-WV06 21.00 26.40

4.2 3.5
A
B 5.4

3.4

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
4 A4202-WVB04 12.60 18.00
5 A4202-WVB05 16.80 22.20
16.3 6 A4202-WVB06 21.00 26.40
3.5

3.3
4.2
A
B 5.4
2.7
2

2
4.8
