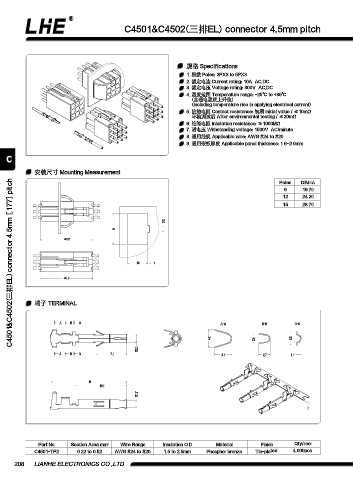

C4501&C4502(三排EL) connector 4.5mm pitch

规格 Specifications
1. 极数 Poles: 3PX3 to 5PX3
2. 额定电流 Current rating: 10A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适用线规 Applicable wire: AWG #24 to #20
9. 适用嵌板厚度 Applicable panel thickness: 1.6~2.0mm
C

安装尺寸 Mounting Measurement
C4501&C4502(三排EL) connector 4.5mm [.177] pitch
Poles DIM=A
9 19.70
12 24.20
15 28.70

5.2
A
39.2

15 1

39.2

端子 TERMINAL

A B C A-A B-B C-C

4.2 2.4 3.3
n2.1
A B C 7.3 4.1 2.7 1.1

18
12.2
1.7
Ø

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4501-TP2 0.22 to 0.52 AWG #24 to #20 1.5 to 2.5mm Phosphor bronze Tin-plated 4,000pcs
