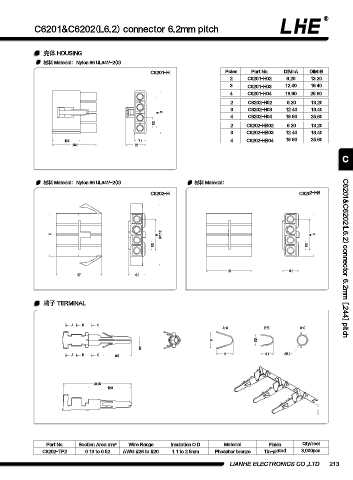

C6201&C6202(L6.2) connector 6.2mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-2(0)
C6201-H Poles Part No. DIM=A DIM=B
2 C6201-H02 6.20 13.20
3 C6201-H03 12.40 19.40
4 C6201-H04 18.60 25.60
2 C6202-H02 6.20 13.20
3 C6202-H03 12.40 19.40
A B
4 C6202-H04 18.60 25.60
6.2 2 C6202-HB02 6.20 13.20
3 C6202-HB03 12.40 19.40
16.5 7.1 4 C6202-HB04 18.60 25.60
26.2 12
C

材料 Material：Nylon 66 UL94V-2(0) 材料 Material：
C6202-H C6202-HB

B A B+11.2 A B
6.2 6.2 C6201&C6202(L6.2) connector 6.2mm [.244] pitch

27 9.9
27 9.9

端子 TERMINAL

A B C
A-A B-B C-C
3.5
5
2
Ø
A B C 8.5 5 3.7 n3.2

20.25
12.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C6202-TP2 0.13 to 0.52 AWG #26 to #20 1.1 to 2.5mm Phosphor bronze Tin-plated 3,000pcs

LIANHE ELECTRONICS CO.,LTD. 213
