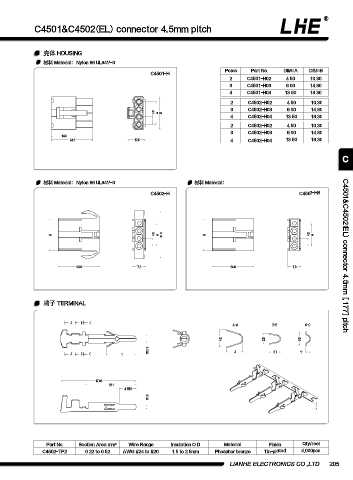

C4501&C4502(EL) connector 4.5mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

C4501-H Poles Part No. DIM=A DIM=B
2 C4501-H02 4.50 10.30
3 C4501-H03 9.00 14.80
4 C4501-H04 13.50 19.30
2 C4502-H02 4.50 10.30
3 C4502-H03 9.00 14.80
4.5 A B
4 C4502-H04 13.50 19.30
2 C4502-H02 4.50 10.30
3 C4502-H03 9.00 14.80
14.6
24.6 10.5 4 C4502-H04 13.50 19.30

C

材料 Material：Nylon 66 UL94V-0 材料 Material：
C4502-H C4502-HB

B 4.5 A B+9 B 4.5 A

24.6 7.8 24.6 7.8 C4501&C4502(EL) connector 4.5mm [.177] pitch

端子 TERMINAL

A B C
A-A B-B C-C
4.2 2.5 3.3
2.15 4
A B C 7 Ø 2.7 1.1

17.85
12.1
4 MIN
1.3
Ø

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4502-TP2 0.22 to 0.52 AWG #24 to #20 1.5 to 2.5mm Phosphor bronze Tin-plated 4,000pcs
