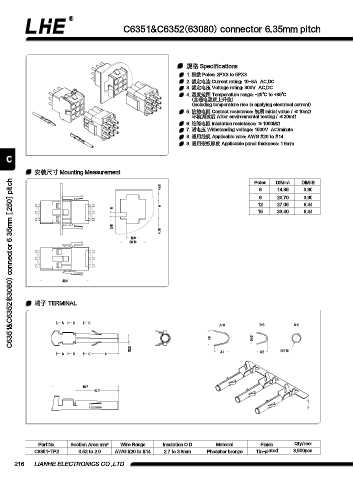

C6351&C6352(63080) connector 6.35mm pitch

规格 Specifications
1. 极数 Poles: 2PX3 to 5PX3
2. 额定电流 Current rating: 10~8A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适用线规 Applicable wire: AWG #20 to #14
9. 适用嵌板厚度 Applicable panel thickness: 1.6mm
C

安装尺寸 Mounting Measurement
C6351&C6352(63080) connector 6.35mm [.250] pitch
Poles DIM=A DIM=B
4.45 6 14.35 3.90
9 20.70 3.90
12 27.05 6.44
A
B
15 33.40 6.44
2.45
4.45
12.9
26.16

42.8

端子 TERMINAL

A B C
A-A B-B C-C
4.6 3.45
2.5
Ø 4.4 3.2 n2.75
A B C 8

19.7
12.7

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C6351-TP2 0.52 to 2.0 AWG #20 to #14 2.7 to 3.8mm Phosphor bronze Tin-plated 3,500pcs

216 LIANHE ELECTRONICS CO.,LTD.
