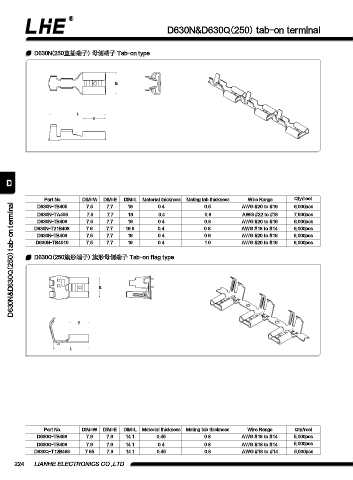

D630N&D630Q(250) tab-on terminal

D630N(250直插端子) 母侧端子 Tab-on type

W

L
E

D

Part No. DIM=W DIM=E DIM=L Material thickness Mating tab thickness Wire Range Qty/reel
D630N&D630Q(250) tab-on terminal
D630N-TB405 7.5 7.7 19 0.4 0.5 AWG #20 to #16 6,000pcs
D630N-TA408 7.5 7.7 19 0.4 0.8 AWG #22 to #18 7,500pcs
D630N-TB408 7.5 7.7 19 0.4 0.8 AWG #20 to #16 6,000pcs
D630N-T21B408 7.6 7.7 19.6 0.4 0.8 AWG #18 to #14 6,000pcs
D630N-TB409 7.5 7.7 19 0.4 0.9 AWG #20 to #16 6,000pcs
D630N-TB4010 7.5 7.7 19 0.4 1.0 AWG #20 to #16 6,000pcs

D630Q(250旗形端子) 旗形母侧端子 Tab-on flag type

W

E

L

Part No. DIM=W DIM=E DIM=L Material thickness Mating tab thickness Wire Range Qty/reel
D630Q-TB468 7.9 7.9 14.1 0.45 0.8 AWG #18 to #14 5,000pcs
D630Q-TB408 7.9 7.9 14.1 0.4 0.8 AWG #18 to #14 5,000pcs
D630Q-T12B468 7.65 7.9 14.1 0.45 0.8 AWG #18 to #14 5,000pcs

224 LIANHE ELECTRONICS CO.,LTD.
