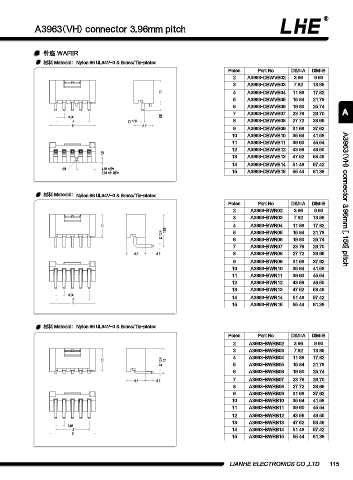

A3963(VH) connector 3.96mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-DBWVB02 3.96 9.90
3 A3963-DBWVB03 7.92 13.86
11 4 A3963-DBWVB04 11.88 17.82
5 A3963-DBWVB05 15.84 21.78
6 A3963-DBWVB06 19.80 25.74 A
3.6 7 A3963-DBWVB07 23.76 29.70
3.96
A o 1.14 8 A3963-DBWVB08 27.72 33.66
B 9.3
9 A3963-DBWVB09 31.68 37.62
10 A3963-DBWVB10 35.64 41.58
11 A3963-DBWVB11 39.60 45.54
12 A3963-DBWVB12 43.56 49.50
1.5
13 A3963-DBWVB13 47.52 53.46
14 A3963-DBWVB14 51.48 57.42
n1 4.95 <2P>
8.91 <3~12P> 15 A3963-DBWVB15 55.44 61.38

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A3963(VH) connector 3.96mm [.156] pitch

Poles Part No. DIM=A DIM=B
2 A3963-BWR02 3.96 9.90
3 A3963-BWR03 7.92 13.86
11 4 A3963-BWR04 11.88 17.82
1.14 15.6 5 A3963-BWR05 15.84 21.78
o
6 A3963-BWR06 19.80 25.74
7 A3963-BWR07 23.76 29.70
9.3 3.6 8 A3963-BWR08 27.72 33.66
9 A3963-BWR09 31.68 37.62
10 A3963-BWR10 35.64 41.58
11 A3963-BWR11 39.60 45.54
12 A3963-BWR12 43.56 49.50
13 A3963-BWR13 47.52 53.46
3.96
A 14 A3963-BWR14 51.48 57.42
B 15 A3963-BWR15 55.44 61.38

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-BWRB02 3.96 9.90
3 A3963-BWRB03 7.92 13.86
11 1.14 12 4 A3963-BWRB04 11.88 17.82
o 5 A3963-BWRB05 15.84 21.78
6 A3963-BWRB06 19.80 25.74
9.3 3.6 7 A3963-BWRB07 23.76 29.70
8 A3963-BWRB08 27.72 33.66
9 A3963-BWRB09 31.68 37.62
10 A3963-BWRB10 35.64 41.58
11 A3963-BWRB11 39.60 45.54
12 A3963-BWRB12 43.56 49.50
13 A3963-BWRB13 47.52 53.46
3.96
A 14 A3963-BWRB14 51.48 57.42
B
15 A3963-BWRB15 55.44 61.38
