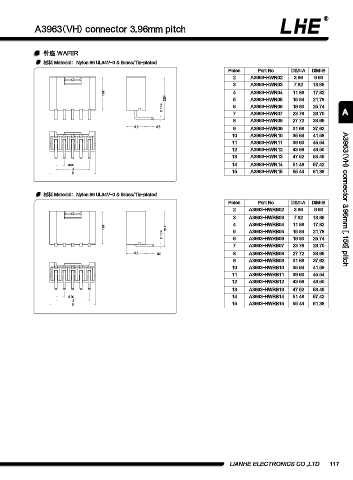

A3963(VH) connector 3.96mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-HWR02 3.96 9.90
3 A3963-HWR03 7.92 13.86
15.8 4 A3963-HWR04 11.88 17.82
20.4 5 A3963-HWR05 15.84 21.78
1.14 6 A3963-HWR06 19.80 25.74
o A
7 A3963-HWR07 23.76 29.70
8 A3963-HWR08 27.72 33.66
9.3 3.6
9 A3963-HWR09 31.68 37.62
10 A3963-HWR10 35.64 41.58
11 A3963-HWR11 39.60 45.54
12 A3963-HWR12 43.56 49.50
13 A3963-HWR13 47.52 53.46
3.96 14 A3963-HWR14 51.48 57.42
A
B 15 A3963-HWR15 55.44 61.38

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A3963(VH) connector 3.96mm [.156] pitch

Poles Part No. DIM=A DIM=B
2 A3963-HWRB02 3.96 9.90
3 A3963-HWRB03 7.92 13.86
4 A3963-HWRB04 11.88 17.82
15.8 16.8
1.14 5 A3963-HWRB05 15.84 21.78
o 6 A3963-HWRB06 19.80 25.74
7 A3963-HWRB07 23.76 29.70
9.3 3.6 8 A3963-HWRB08 27.72 33.66
9 A3963-HWRB09 31.68 37.62
10 A3963-HWRB10 35.64 41.58
11 A3963-HWRB11 39.60 45.54
12 A3963-HWRB12 43.56 49.50
13 A3963-HWRB13 47.52 53.46
3.96 14 A3963-HWRB14 51.48 57.42
A
B 15 A3963-HWRB15 55.44 61.38
