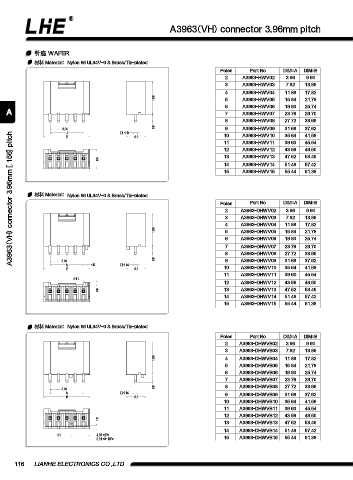

A3963(VH) connector 3.96mm pitch

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-HWV02 3.96 9.90
3 A3963-HWV03 7.92 13.86
4 A3963-HWV04 11.88 17.82
15.8 5 A3963-HWV05 15.84 21.78
6 A3963-HWV06 19.80 25.74
A 7 A3963-HWV07 23.76 29.70
8 A3963-HWV08 27.72 33.66
3.96 3.6 9 A3963-HWV09 31.68 37.62
A3963(VH) connector 3.96mm [.156] pitch
A o 1.14
B 9.3 10 A3963-HWV10 35.64 41.58
11 A3963-HWV11 39.60 45.54
12 A3963-HWV12 43.56 49.50
13 A3963-HWV13 47.52 53.46
9.3
14 A3963-HWV14 51.48 57.42
15 A3963-HWV15 55.44 61.38

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated

Poles Part No. DIM=A DIM=B
2 A3963-DHWV02 3.96 9.90
3 A3963-DHWV03 7.92 13.86
4 A3963-DHWV04 11.88 17.82
15.8 5 A3963-DHWV05 15.84 21.78
6 A3963-DHWV06 19.80 25.74
7 A3963-DHWV07 23.76 29.70
8 A3963-DHWV08 27.72 33.66
3.96 3.6 9 A3963-DHWV09 31.68 37.62
A 1.5 o 1.14
B 9.3 10 A3963-DHWV10 35.64 41.58
11 A3963-DHWV11 39.60 45.54
n1.2
12 A3963-DHWV12 43.56 49.50
0.9 13 A3963-DHWV13 47.52 53.46
14 A3963-DHWV14 51.48 57.42
15 A3963-DHWV15 55.44 61.38

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A3963-DHWVB02 3.96 9.90
3 A3963-DHWVB03 7.92 13.86
15.8 4 A3963-DHWVB04 11.88 17.82
5 A3963-DHWVB05 15.84 21.78
6 A3963-DHWVB06 19.80 25.74
7 A3963-DHWVB07 23.76 29.70
3.6 8 A3963-DHWVB08 27.72 33.66
3.96
A o 1.14 9 A3963-DHWVB09 31.68 37.62
B 9.3
10 A3963-DHWVB10 35.64 41.58
11 A3963-DHWVB11 39.60 45.54
12 A3963-DHWVB12 43.56 49.50
1.5
13 A3963-DHWVB13 47.52 53.46
14 A3963-DHWVB14 51.48 57.42
n1 4.95 <2P> 15 A3963-DHWVB15 55.44 61.38
8.91 <3~16P>
