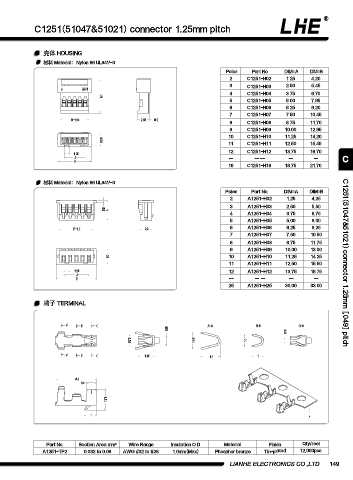

C1251(51047&51021) connector 1.25mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C1251-H02 1.25 4.20
3 C1251-H03 2.50 5.45
4 C1251-H04 3.75 6.70
8.1
5 C1251-H05 5.00 7.95
6 C1251-H06 6.25 9.20
7 C1251-H07 7.50 10.45
B-1.24 2.65 0.2
8 C1251-H08 8.75 11.70
9 C1251-H09 10.00 12.95
10 C1251-H10 11.25 14.20
3.25
11 C1251-H11 12.50 15.45
12 C1251-H12 13.75 16.70
1.25
A -- -- -- -- -- C
B
16 C1251-H16 18.75 21.70

材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A1251-H02 1.25 4.25
3 A1251-H03 2.50 5.50
0.5 4
4 A1251-H04 3.75 6.75
5 A1251-H05 5.00 8.00
B-1.3 2.3 6 A1251-H06 6.25 9.25
7 A1251-H07 7.50 10.50
8 A1251-H08 8.75 11.75
9 A1251-H09 10.00 13.00
3.1 10 A1251-H10 11.25 14.25
11 A1251-H11 12.50 15.50 C1251(51047&51021) connector 1.25mm [.049] pitch
1.25 12 A1251-H12 13.75 16.75
A
B -- -- -- -- --
25 A1251-H25 30.00 33.00

端子 TERMINAL

A B C A-A B-B C-C
0.93
0.13
0.75 1.45 1.1

A B C 1.45 1.6 1

3.4
0.8

1.78

1

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A1251-TP2 0.032 to 0.08 AWG #32 to #28 1.0mm(Max) Phosphor bronze Tin-plated 12,000pcs

LIANHE ELECTRONICS CO.,LTD. 149
