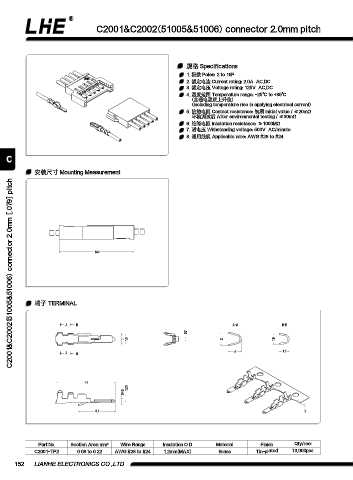

C2001&C2002(51005&51006) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 125V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
8. 适用线规 Applicable wire: AWG #28 to #24

C

安装尺寸 Mounting Measurement
C2001&C2002(51005&51006) connector 2.0mm [.079] pitch

14.8

端子 TERMINAL

A B A-A B-B
0.7
1 1.5 2 1.6

2 1.5
A B

8.7
1.25
0.42

5.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2001-TP2 0.08 to 0.22 AWG #28 to #24 1.2mm(MAX) Brass Tin-plated 13,000pcs
