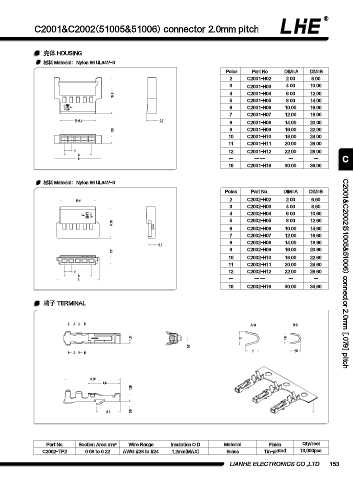

C2001&C2002(51005&51006) connector 2.0mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C2001-H02 2.00 8.00
3 C2001-H03 4.00 10.00
4 C2001-H04 6.00 12.00
10.8
5 C2001-H05 8.00 14.00
6 C2001-H06 10.00 16.00
7 C2001-H07 12.00 18.00
B-3.4 2.7 8 C2001-H08 14.00 20.00
2.5 9 C2001-H09 16.00 22.00
10 C2001-H10 18.00 24.00
11 C2001-H11 20.00 26.00
2 12 C2001-H12 22.00 28.00
A
B -- -- -- -- -- C
16 C2001-H16 30.00 36.00

材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
B-2 2 C2002-H02 2.00 6.60
3 C2002-H03 4.00 8.60
4 C2002-H04 6.00 10.60
9.25 5 C2002-H05 8.00 12.60
6 C2002-H06 10.00 14.60
7 C2002-H07 12.00 16.60
8 C2002-H08 14.00 18.60
2.1
2.7 9 C2002-H09 16.00 20.60
10 C2002-H10 18.00 22.60
11 C2002-H11 20.00 24.60
2 12 C2002-H12 22.00 26.60
A C2001&C2002(51005&51006) connector 2.0mm [.079] pitch
B -- -- -- -- --
16 C2002-H16 30.00 34.60

端子 TERMINAL

A B A-A B-B

1.5 2 1.6
0.7
2 1.5
A B

8.35
4.8
1.25

3.6 0.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2002-TP2 0.08 to 0.22 AWG #28 to #24 1.2mm(MAX) Brass Tin-plated 13,000pcs
