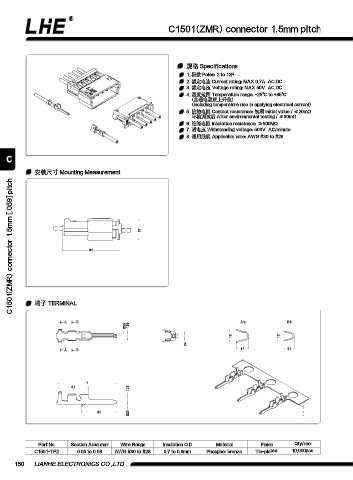

C1501(ZMR) connector 1.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 12P
2. 额定电流 Current rating: MAX 0.7A AC,DC
3. 额定电压 Voltage rating: MAX 50V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥500MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
8. 适用线规 Applicable wire: AWG #30 to #28

C

安装尺寸 Mounting Measurement
C1501(ZMR) connector 1.5mm [.059] pitch

3.7

9.6

端子 TERMINAL

A B A-A B-B
0.5 1.05
n
1.5 1.2
0.4
A B 1.5 1.2

7
3.7 1.15

4.2
0.25

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C1501-TP2 0.05 to 0.08 AWG #30 to #28 0.7 to 0.9mm Phosphor bronze Tin-plated 10,000pcs

150 LIANHE ELECTRONICS CO.,LTD.
