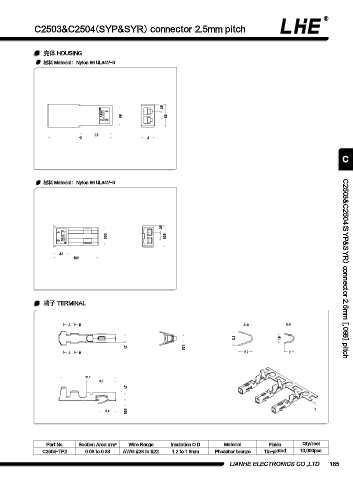

C2503&C2504(SYP&SYR) connector 2.5mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

2.5
5.9 6.8

9.5
19 4

C

材料 Material：Nylon 66 UL94V-0

2.5
5.35 6.35

4.3
13.2 C2503&C2504(SYP&SYR) connector 2.5mm [.098] pitch

端子 TERMINAL

A B A-A B-B

2.8 1.9
1.7 0.75
A B 2.7 2

11.1
5.8
1.7

3.4 0.65

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2504-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 10,000pcs
