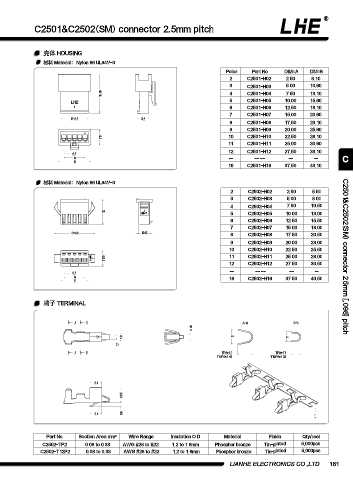

C2501&C2502(SM) connector 2.5mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C2501-H02 2.50 8.10
3 C2501-H03 5.00 10.60
18.35 4 C2501-H04 7.50 13.10
5 C2501-H05 10.00 15.60
6 C2501-H06 12.50 18.10
7 C2501-H07 15.00 20.60
B-2.5 5.6
8 C2501-H08 17.50 23.10
9 C2501-H09 20.00 25.60
7.6 10 C2501-H10 22.50 28.10
11 C2501-H11 25.00 30.60
12 C2501-H12 27.50 33.10
2.5
A -- -- -- -- -- C
B
16 C2501-H16 37.50 43.10

材料 Material：Nylon 66 UL94V-0
2 C2502-H02 2.50 5.50
3 C2502-H03 5.00 8.00
4 C2502-H04 7.50 10.50
12 5 C2502-H05 10.00 13.00
6 C2502-H06 12.50 15.50
7 C2502-H07 15.00 18.00
B+6.2 5.05
8 C2502-H08 17.50 20.50
9 C2502-H09 20.00 23.00
10 C2502-H10 22.50 25.50
7.55 11 C2502-H11 25.00 28.00 C2501&C2502(SM) connector 2.5mm [.098] pitch
12 C2502-H12 27.50 30.50
-- -- -- -- --
2.5
A 16 C2502-H16 37.50 40.50
B

端子 TERMINAL

A B A-A B-B
0.65
1.9 3 2
1.1
A B TP2= 2.9 TP2= 1.7
T12P2=3.15 T12P2=2.15

2.4

2.95

2.4 0.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2502-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 5,000pcs
C2502-T12P2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 5,000pcs

LIANHE ELECTRONICS CO.,LTD. 161
