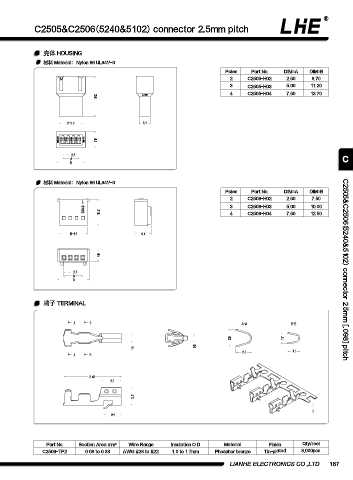

C2505&C2506(5240&5102) connector 2.5mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C2505-H02 2.50 8.70
3 C2505-H03 5.00 11.20
4 C2505-H04 7.50 13.70
19.2

B-2.8 5.1

7.9

2.5
A C
B

材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2506-H02 2.50 7.50
3 C2506-H03 5.00 10.00
10.5 4 C2506-H04 7.50 12.50

B-1.6 6.4

4.9

2.5 C2505&C2506(5240&5102) connector 2.5mm [.098] pitch
A
B

端子 TERMINAL

A B A-A B-B

2.6 1.7
1.4 0.6
2.3 1.8
A B

8.45
2.9

2.7

2.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2506-TP2 0.08 to 0.33 AWG #28 to #22 1.0 to 1.7mm Phosphor bronze Tin-plated 8,000pcs

LIANHE ELECTRONICS CO.,LTD. 167
