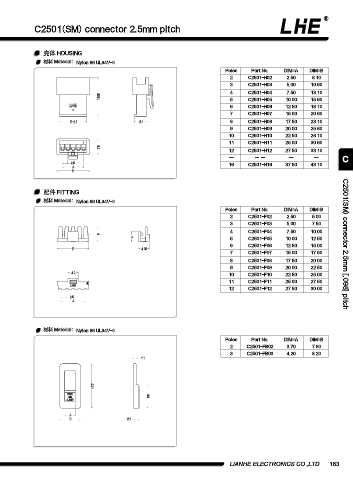

C2501(SM) connector 2.5mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C2501-H02 2.50 8.10
3 C2501-H03 5.00 10.60
4 C2501-H04 7.50 13.10
18.35 5 C2501-H05 10.00 15.60
6 C2501-H06 12.50 18.10
7 C2501-H07 15.00 20.60
B-2.5 5.6 8 C2501-H08 17.50 23.10
9 C2501-H09 20.00 25.60
10 C2501-H10 22.50 28.10
11 C2501-H11 25.00 30.60
7.6
12 C2501-H12 27.50 33.10
-- -- -- -- -- C
2.5
A 16 C2501-H16 37.50 43.10
B

配件 FITTING
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2501-F02 2.50 5.00
3 C2501-F03 5.00 7.50
4 C2501-F04 7.50 10.00
6
4
5 C2501-F05 10.00 12.50
6 C2501-F06 12.50 15.00 C2501(SM) connector 2.5mm [.098] pitch
B 4.35
7 C2501-F07 15.00 17.50
8 C2501-F08 17.50 20.00
9 C2501-F09 20.00 22.50
4.2
10 C2501-F10 22.50 25.00
11 C2501-F11 25.00 27.50
12 C2501-F12 27.50 30.00
2.5
A

材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2501-FB02 3.70 7.60
3 C2501-FB03 4.20 8.20
1.1

17.7
9.6

A
B 2.2

LIANHE ELECTRONICS CO.,LTD. 163
