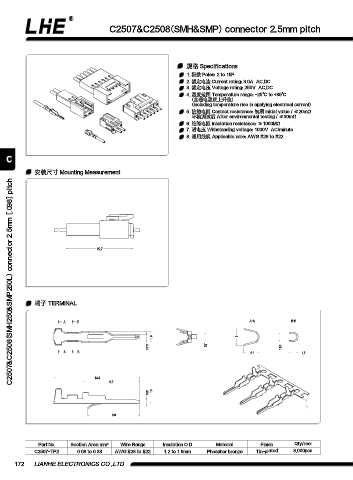

C2507&C2508(SMH&SMP) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 15P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
8. 适用线规 Applicable wire: AWG #28 to #22

C

安装尺寸 Mounting Measurement
C2507&C2508(SMH250&SMP250L) connector 2.5mm [.098] pitch

22.7

端子 TERMINAL

A B A-A B-B

1.9 3
0.75 0.7 1.65
A B 2.6 1.5

14.4
9.6
0.75 1.5

8.8

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2507-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 8,000pcs

172 LIANHE ELECTRONICS CO.,LTD.
