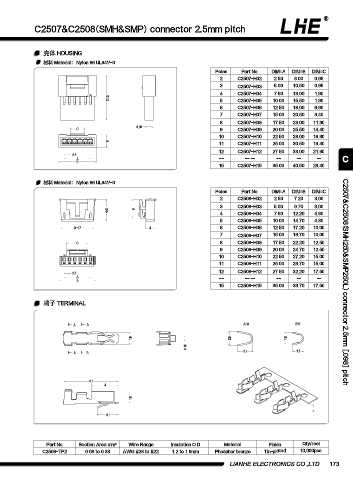

C2507&C2508(SMH&SMP) connector 2.5mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B DIM=C
2 C2507-H02 2.50 8.00 0.95
3 C2507-H03 5.00 10.50 0.95
4 C2507-H04 7.50 13.00 1.90
21.2 5 C2507-H05 10.00 15.50 1.90
6 C2507-H06 12.50 18.00 6.90
7 C2507-H07 15.00 20.50 9.40
8 C2507-H08 17.50 23.00 11.90
3.85
C 9 C2507-H09 20.00 25.50 14.40
10 C2507-H10 22.50 28.00 16.90
6
11 C2507-H11 25.00 30.50 19.40
12 C2507-H12 27.50 33.00 21.90
2.5
A - - - - - - - - - - - - C
B
15 C2507-H15 35.00 40.50 29.40
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B DIM=C
2 C2508-H02 2.50 7.20 3.00
3 C2508-H03 5.00 9.70 3.00
10.5 9
4 C2508-H04 7.50 12.20 4.80
5 C2508-H05 10.00 14.70 4.80
B-1.7 4 6 C2508-H06 12.50 17.20 10.00
7 C2508-H07 15.00 19.70 10.00
C 8 C2508-H08 17.50 22.20 12.50
9 C2508-H09 20.00 24.70 12.50
10 C2508-H10 22.50 27.20 15.00
11 C2508-H11 25.00 29.70 15.00
12 C2508-H12 27.50 32.20 17.50
2.5
A - - - - - - - - - - - -
B C2507&C2508(SMH250&SMP250L) connector 2.5mm [.098] pitch
15 C2508-H15 35.00 39.70 17.50
端子 TERMINAL

A B A-A B-B

1.9 2.3 1.8
0.85
A B 2.2 1.6

8.1
4
1.8

3.1

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2508-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs
