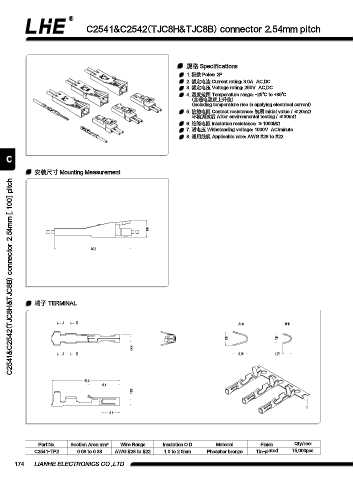

C2541&C2542(TJC8H&TJC8B) connector 2.54mm pitch

规格 Specifications
1. 极数 Poles: 2P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤30mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
8. 适用线规 Applicable wire: AWG #28 to #22

C

安装尺寸 Mounting Measurement
C2541&C2542(TJC8H&TJC8B) connector 2.54mm [.100] pitch

6.8

30.5

端子 TERMINAL

A B A-A B-B

2.8 1.9
1.44
A B 2.95 1.75

13.3
6.4
1.53

3.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2541-TP2 0.08 to 0.33 AWG #28 to #22 1.0 to 2.0mm Phosphor bronze Tin-plated 15,000pcs

174 LIANHE ELECTRONICS CO.,LTD.
