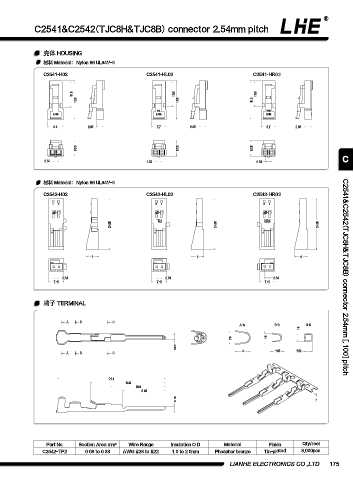

C2541&C2542(TJC8H&TJC8B) connector 2.54mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

C2541-H02 C2541-HL02 C2541-HR02

10.6 10.3 10.3
15.3 15.3 15.3

6.4 2.85 5.7 2.85 5.7 2.85

6.25 6.25 6.25
C
2.54 2.54 2.54

材料 Material：Nylon 66 UL94V-0
C2542-H02 C2542-HL02 C2542-HR02

24.35 24.35 24.35

6 6 6

2.54 2.54 2.54 C2541&C2542(TJC8H&TJC8B) connector 2.54mm [.100] pitch
7.12 7.12 7.12

端子 TERMINAL

A B C
A-A B-B C-C
1.6
2.8 1.8
0.82
A B C 3 1.85 1.52

21.4
14.8
10.8
8.45
0.73

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2542-TP2 0.08 to 0.33 AWG #28 to #22 1.0 to 2.0mm Phosphor bronze Tin-plated 8,000pcs

LIANHE ELECTRONICS CO.,LTD. 175
