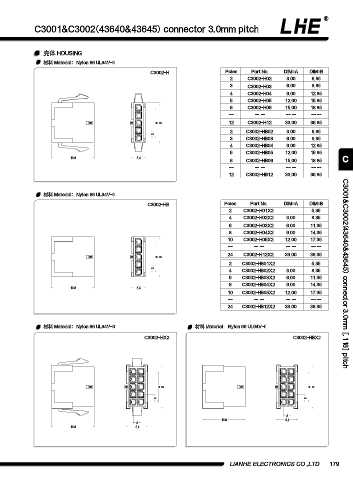

C3001&C3002(43640&43645) connector 3.0mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

C3002-H Poles Part No. DIM=A DIM=B
2 C3002-H02 3.00 6.85
3 C3002-H03 6.00 9.85
4 C3002-H04 9.00 12.85
5 C3002-H05 12.00 15.85
6 C3002-H06 15.00 18.85
-- -- -- -- -- -- --
12 C3002-H12 33.00 36.85
A B
2 C3002-HB02 3.00 6.85
3
3 C3002-HB03 6.00 9.85
4 C3002-HB04 9.00 12.85
5 C3002-HB05 12.00 15.85
16.8 5.4 C
6 C3002-HB06 15.00 18.85
-- -- -- -- -- -- --
12 C3002-HB12 33.00 36.85

材料 Material：Nylon 66 UL94V-0

C3002-HB Poles Part No. DIM=A DIM=B
2 C3002-H01X2 5.35
4 C3002-H02X2 3.00 8.35
6 C3002-H03X2 6.00 11.35
8 C3002-H04X2 9.00 14.35
10 C3002-H05X2 12.00 17.35
-- -- -- -- -- -- --
24 C3002-H12X2 33.00 38.35
A B
2 C3002-HB01X2 5.35
3
4 C3002-HB02X2 3.00 8.35 C3001&C3002(43640&43645) connector 3.0mm [.118] pitch
6 C3002-HB03X2 6.00 11.35
8 C3002-HB04X2 9.00 14.35
16.8 5.4
10 C3002-HB05X2 12.00 17.35
-- -- -- -- -- -- --
24 C3002-HB12X2 33.00 38.35

材料 Material：Nylon 66 UL94V-0 材料 Material：Nylon 66 UL94V-0
C3002-HX2 C3002-HBX2

A B A B

3 3

3
16.8 8.4
3
16.8 8.4
