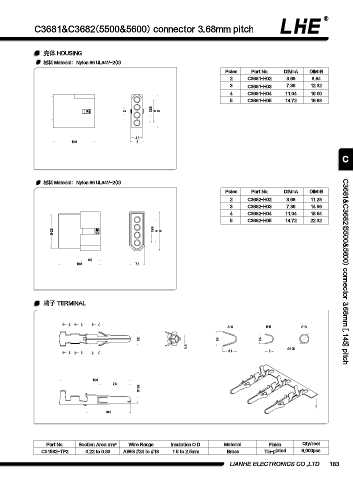

C3681&C3682(5500&5600) connector 3.68mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 C3681-H02 3.68 8.64
3 C3681-H03 7.36 12.32
4 C3681-H04 11.04 16.00
5 C3681-H05 14.72 19.68
3.68
2 A B

4.9
19.8 6
C

材料 Material：Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 C3682-H02 3.68 11.28
3 C3682-H03 7.36 14.96
4 C3682-H04 11.04 18.64
5 C3682-H05 14.72 22.32
B-2.3 3.68 A B

9.5
19.8 7.3 C3681&C3682(5500&5600) connector 3.68mm [.145] pitch

端子 TERMINAL

A B C A-A B-B C-C

3.2 3.4 2.4
0.6 n2.25
3.4 2
A B C

16.8
7.6
1.58
Ø

10.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C01582-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Brass Tin-plated 6,000pcs
