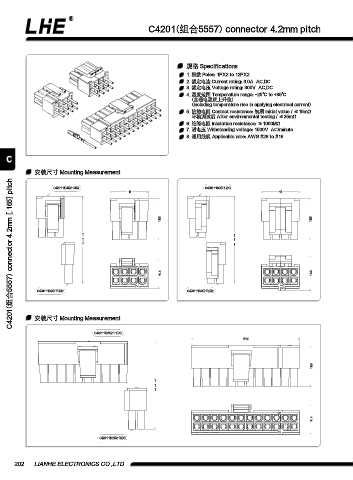

C4201(组合5557) connector 4.2mm pitch

规格 Specifications
1. 极数 Poles: 1PX2 to 12PX2
2. 额定电流 Current rating: 9.0A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤15mΩ
环境测试后 After environmental testing / ≤25mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适用线规 Applicable wire: AWG #28 to #16

C

安装尺寸 Mounting Measurement
C4201(组合5557) connector 4.2mm [.165] pitch
C4201-H04X2-L3X2 C4201-H04X2-L2X2
18 18

19.5 19.5

→ → → → → →

14.4 16.8

C4201-H04X2-R1X2 C4201-H04X2-R2X2

安装尺寸 Mounting Measurement

C4201-H12X2-L10X2
51.6

19.5

→ → →

14.4

C4201-H12X2-R2X2
