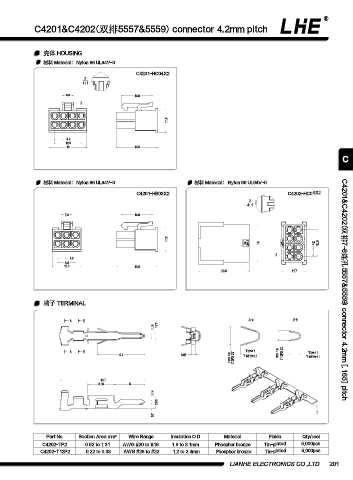

C4201&C4202(双排5557&5559) connector 4.2mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

C4201-HC04X2
Z
4 : 1

5.3 14.8
Z

11.6

4.2
12.6
18 19.5
C

材料 Material：Nylon 66 UL94V-0 材料 Material：Nylon 66 UL94V-0
C4201-HB03X2 C4202-HC04X2
Z
4 : 1
5.3 14.8

11.6
18 4.2 12.6
Z
4.2
8.4
13.8 19.5
23.9 11.7

端子 TERMINAL C4201&C4202(双排7~8连孔5557&5559) connector 4.2mm [.165] pitch

A B A-A B-B
1.14 1.75

A B TP2=3.7 TP2= 2.3
9.4 0.85 3.8 T12P2=2.6 TP2=1.9 T12P2=2.1 T12P2=2.2
TP2= T12P2=2.7

16.7
5.35 6
1.14
2.53

0.7

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4202-TP2 0.52 to 1.31 AWG #20 to #16 1.9 to 3.1mm Phosphor bronze Tin-plated 5,000pcs
C4202-T12P2 0.22 to 0.33 AWG #28 to #22 1.2 to 2.4mm Phosphor bronze Tin-plated 5,000pcs

LIANHE ELECTRONICS CO.,LTD. 201
