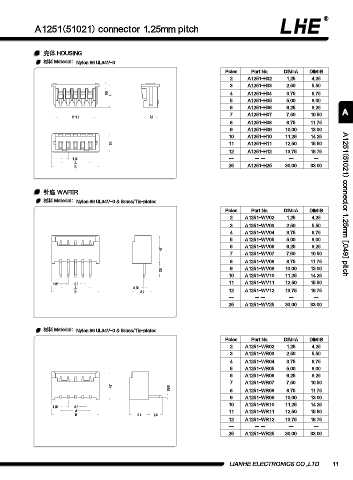

A1251(51021) connector 1.25mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 A1251-H02 1.25 4.25
3 A1251-H03 2.50 5.50
0.5 4 A1251-H04 3.75 6.75
4
5 A1251-H05 5.00 8.00
6 A1251-H06 6.25 9.25
7 A1251-H07 7.50 10.50 A
B-1.3 2.3
8 A1251-H08 8.75 11.75
9 A1251-H09 10.00 13.00
10 A1251-H10 11.25 14.25
3.1 11 A1251-H11 12.50 15.50
12 A1251-H12 13.75 16.75
1.25 -- -- -- -- --
A
B 25 A1251-H25 30.00 33.00

针座 WAFER
材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated A1251(51021) connector 1.25mm [.049] pitch
Poles Part No. DIM=A DIM=B
2 A1251-WV02 1.25 4.25
3 A1251-WV03 2.50 5.50
4 A1251-WV04 3.75 6.75
5 A1251-WV05 5.00 8.00
6 A1251-WV06 6.25 9.25
4.7
7 A1251-WV07 7.50 10.50
8 A1251-WV08 8.75 11.75
9 A1251-WV09 10.00 13.00
2.3
10 A1251-WV10 11.25 14.25
11 A1251-WV11 12.50 15.50
1.25 0.3
A 0.35 12 A1251-WV12 13.75 16.75
B 3.2
-- -- -- -- --
25 A1251-WV25 30.00 33.00

材料 Material：Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1251-WR02 1.25 4.25
3 A1251-WR03 2.50 5.50
4 A1251-WR04 3.75 6.75
5 A1251-WR05 5.00 8.00
6 A1251-WR06 6.25 9.25
7 A1251-WR07 7.50 10.50
4.7
0.35 8 A1251-WR08 8.75 11.75
9 A1251-WR09 10.00 13.00
10 A1251-WR10 11.25 14.25
1.25 0.3
A 11 A1251-WR11 12.50 15.50
B 3.2 2.3
12 A1251-WR12 13.75 16.75
-- -- -- -- --
25 A1251-WR25 30.00 33.00
