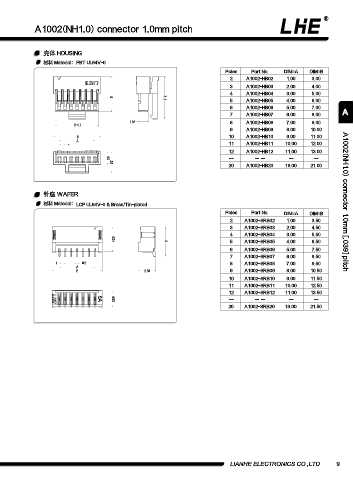

A1002(NH1.0) connector 1.0mm pitch

壳体 HOUSING
材料 Material：PBT UL94V-0

Poles Part No. DIM=A DIM=B
2 A1002-HB02 1.00 3.00
3 A1002-HB03 2.00 4.00
4 A1002-HB04 3.00 5.00
6 7.2 5 A1002-HB05 4.00 6.00
6 A1002-HB06 5.00 7.00
7 A1002-HB07 6.00 8.00 A
1.68 8 A1002-HB08 7.00 9.00
B-0.6
9 A1002-HB09 8.00 10.00
B 10 A1002-HB10 9.00 11.00
A
1 11 A1002-HB11 10.00 12.00
12 A1002-HB12 11.00 13.00
2.3 -- -- -- -- --
3.7
20 A1002-HB20 19.00 21.00

针座 WAFER
材料 Material：LCP UL94V-0 & Brass/Tin-plated A1002(NH1.0) connector 1.0mm [.039] pitch

Poles Part No. DIM=A DIM=B
2 A1002-SRB02 1.00 3.50
3 A1002-SRB03 2.00 4.50
4 A1002-SRB04 3.00 5.50
4.25 5 5 A1002-SRB05 4.00 6.50
6 A1002-SRB06 5.00 7.50
7 A1002-SRB07 6.00 8.50
1 0.2 8 A1002-SRB08 7.00 9.50
A
B 2.88 9 A1002-SRB09 8.00 10.50
10 A1002-SRB10 9.00 11.50
11 A1002-SRB11 10.00 12.50
12 A1002-SRB12 11.00 13.50
2.88 -- -- -- -- --
20 A1002-SRB20 19.00 21.50
