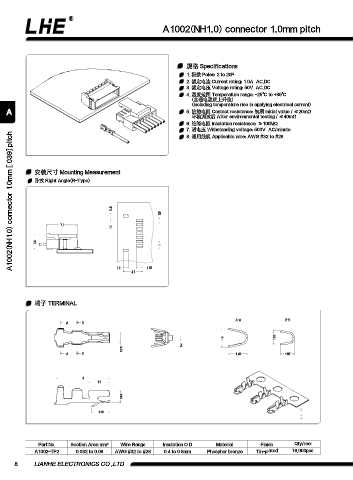

A1002(NH1.0) connector 1.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 20P
2. 额定电流 Current rating: 1.0A AC,DC
3. 额定电压 Voltage rating: 50V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤40mΩ
6. 绝缘电阻 Insulation resistance: ≥100MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
A1002(NH1.0) connector 1.0mm [.039] pitch
8. 适用线规 Applicable wire: AWG #32 to #28

安装尺寸 Mounting Measurement
卧式 Right Angle(R-Type)

0.6
0.6

7.3
1.1
3.9
1

1.2 1.55
4.7

端子 TERMINAL

A-A B-B
A B

1.4 1.05
0.4
0.78
A B 1.45 1.05

4
1.6

0.95

1.35

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A1002-TP2 0.032 to 0.08 AWG #32 to #28 0.4 to 0.8mm Phosphor bronze Tin-plated 16,000pcs
