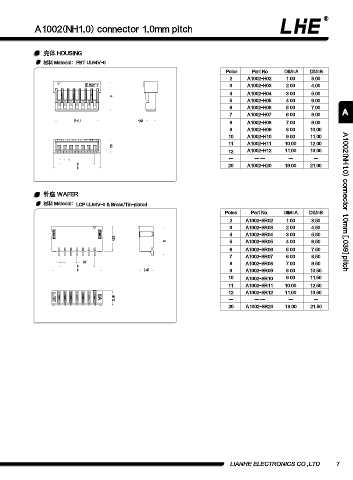

A1002(NH1.0) connector 1.0mm pitch

壳体 HOUSING
材料 Material：PBT UL94V-0

Poles Part No. DIM=A DIM=B
2 A1002-H02 1.00 3.00
3 A1002-H03 2.00 4.00
4 A1002-H04 3.00 5.00
5
5 A1002-H05 4.00 6.00
6 A1002-H06 5.00 7.00
7 A1002-H07 6.00 8.00 A
B-0.6 1.68 8 A1002-H08 7.00 9.00
9 A1002-H09 8.00 10.00
10 A1002-H10 9.00 11.00
11 A1002-H11 10.00 12.00
2.3
12 A1002-H12 11.00 13.00
-- -- -- -- --
1
A 20 A1002-H20 19.00 21.00
B

针座 WAFER
材料 Material：LCP UL94V-0 & Brass/Tin-plated A1002(NH1.0) connector 1.0mm [.039] pitch

Poles Part No. DIM=A DIM=B
2 A1002-SR02 1.00 3.50
3 A1002-SR03 2.00 4.50
4 A1002-SR04 3.00 5.50
4.25 5 5 A1002-SR05 4.00 6.50
6 A1002-SR06 5.00 7.50
7 A1002-SR07 6.00 8.50
1 0.2 8 A1002-SR08 7.00 9.50
A
B 2.48 9 A1002-SR09 8.00 10.50
10 A1002-SR10 9.00 11.50
11 A1002-SR11 10.00 12.50
12 A1002-SR12 11.00 13.50
2.48 -- -- -- -- --
20 A1002-SR20 19.00 21.50

LIANHE ELECTRONICS CO.,LTD. 7
