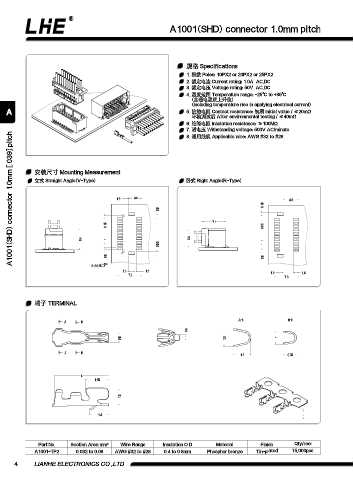

A1001(SHD) connector 1.0mm pitch

规格 Specifications
1. 极数 Poles: 10PX2 or 20PX2 or 25PX2
2. 额定电流 Current rating: 1.0A AC,DC
3. 额定电压 Voltage rating: 50V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤40mΩ
6. 绝缘电阻 Insulation resistance: ≥100MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
A1001(SHD) connector 1.0mm [.039] pitch
8. 适用线规 Applicable wire: AWG #32 to #28

安装尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

1.6 3.9 4.6
0.85
0.6
7.1
0.55 0.95

6.4 1 5.6 1
0.85

0.6 0.6
+ 0.05
2-n0.55 -0
1.8 1.6 1.8 1.6
7.2 7.3

端子 TERMINAL

A B A-A B-B
0.4
0.8 1.3 1

A B 1.3 0.95

4
1.65

1.3

1.4

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A1001-TP2 0.032 to 0.08 AWG #32 to #28 0.4 to 0.8mm Phosphor bronze Tin-plated 15,000pcs
