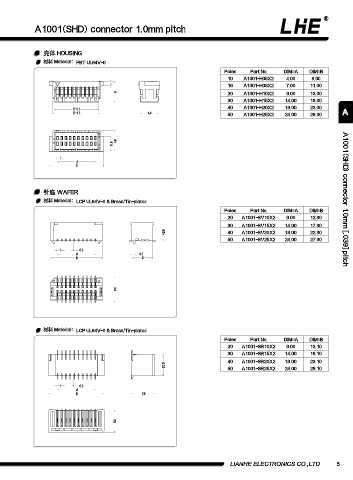

A1001(SHD) connector 1.0mm pitch

壳体 HOUSING
材料 Material：PBT UL94V-0

Poles Part No. DIM=A DIM=B
10 A1001-H05X2 4.00 8.00
1
16 A1001-H08X2 7.00 11.00
5 20 A1001-H10X2 9.00 13.00
30 A1001-H15X2 14.00 18.00
40 A1001-H20X2 19.00 23.00
B-2.6
B-1.8 4.2 A
50 A1001-H25X2 24.00 28.00

4.9
3.6

1
A
B

针座 WAFER
材料 Material：LCP UL94V-0 & Brass/Tin-plated A1001(SHD) connector 1.0mm [.039] pitch
Poles Part No. DIM=A DIM=B
20 A1001-SV10X2 9.00 12.30
30 A1001-SV15X2 14.00 17.30
4.35 40 A1001-SV20X2 19.00 22.30
50 A1001-SV25X2 24.00 27.30
1 0.2
A 0.6
B 5

6.3

材料 Material：LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
20 A1001-SR10X2 9.00 13.10
30 A1001-SR15X2 14.00 18.10
40 A1001-SR20X2 19.00 23.10
5.15 50 A1001-SR25X2 24.00 28.10

1 0.2
A
B 5.5

5.4

LIANHE ELECTRONICS CO.,LTD. 5
