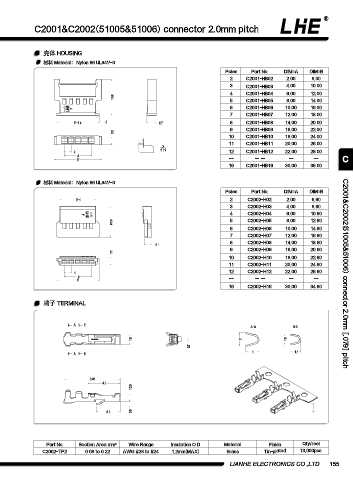

C2001&C2002(51005&51006) connector 2.0mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C2001-HB02 2.00 8.00
3 C2001-HB03 4.00 10.00
4 C2001-HB04 6.00 12.00
10.8 5 C2001-HB05 8.00 14.00
6 C2001-HB06 10.00 16.00
7 C2001-HB07 12.00 18.00
B-1.4 Z 2.7 8 C2001-HB08 14.00 20.00
9 C2001-HB09 16.00 22.00
2.5
10 C2001-HB10 18.00 24.00
11 C2001-HB11 20.00 26.00
Z
6 : 1
2 12 C2001-HB12 22.00 28.00
A
B -- -- -- -- -- C
16 C2001-HB16 30.00 36.00
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
B-2 2 C2002-H02 2.00 6.60
3 C2002-H03 4.00 8.60
4 C2002-H04 6.00 10.60
9.25 5 C2002-H05 8.00 12.60
6 C2002-H06 10.00 14.60
7 C2002-H07 12.00 16.60
8 C2002-H08 14.00 18.60
2.1
9 C2002-H09 16.00 20.60
2.7
10 C2002-H10 18.00 22.60
11 C2002-H11 20.00 24.60
2 12 C2002-H12 22.00 26.60 C2001&C2002(51005&51006) connector 2.0mm [.079] pitch
A
B -- -- -- -- --
16 C2002-H16 30.00 34.60

端子 TERMINAL

A B A-A B-B

1.5 2 1.6
0.7
2 1.5
A B

8.35
4.8
1.25

3.6 0.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C2002-TP2 0.08 to 0.22 AWG #28 to #24 1.2mm(MAX) Brass Tin-plated 13,000pcs

LIANHE ELECTRONICS CO.,LTD. 155
