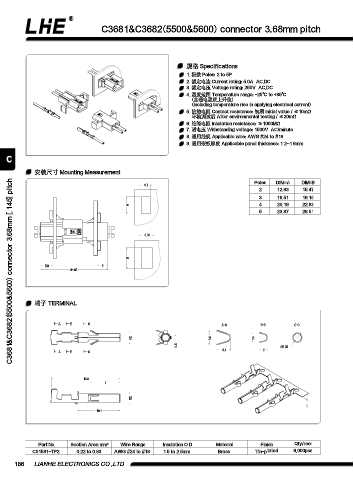

C3681&C3682(5500&5600) connector 3.68mm pitch

规格 Specifications
1. 极数 Poles: 2 to 5P
2. 额定电流 Current rating: 5.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适用线规 Applicable wire: AWG #24 to #18
9. 适用嵌板厚度 Applicable panel thickness: 1.2~1.6mm
C

安装尺寸 Mounting Measurement
C3681&C3682(5500&5600) connector 3.68mm [.145] pitch
Poles DIM=A DIM=B
6.7
2 12.83 15.47
3 16.51 19.15
4 20.19 22.83
A
5 23.87 26.51

8.05

B
5.8 5
31.86

端子 TERMINAL

A B C A-A B-B C-C

3.2 3.4 2.4
0.6 n2.25
A B C 3.4 2

16.3
7

2
Ø
10.1

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C01581-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Brass Tin-plated 6,000pcs
