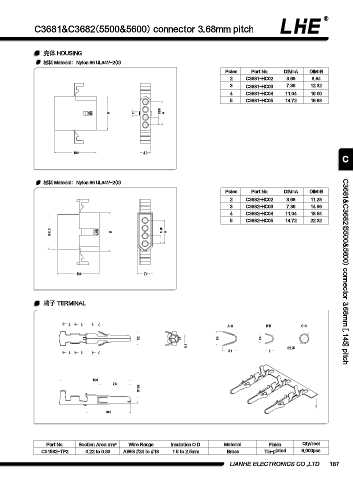

C3681&C3682(5500&5600) connector 3.68mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 C3681-HC02 3.68 8.64
3 C3681-HC03 7.36 12.32
4 C3681-HC04 11.04 16.00
5 C3681-HC05 14.72 19.68
3.68
B 2 A

19.8 4.9
C

材料 Material：Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 C3682-HC02 3.68 11.28
3 C3682-HC03 7.36 14.96
4 C3682-HC04 11.04 18.64
5 C3682-HC05 14.72 22.32
B-2.3 B 3.68 A

19.8 7.3 C3681&C3682(5500&5600) connector 3.68mm [.145] pitch

端子 TERMINAL

A B C
A-A B-B C-C
3.2 3.4 2.4
0.6 n2.25
A B C 3.4 2

16.8
7.6
1.58
Ø

10.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C01582-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Brass Tin-plated 6,000pcs

LIANHE ELECTRONICS CO.,LTD. 187
