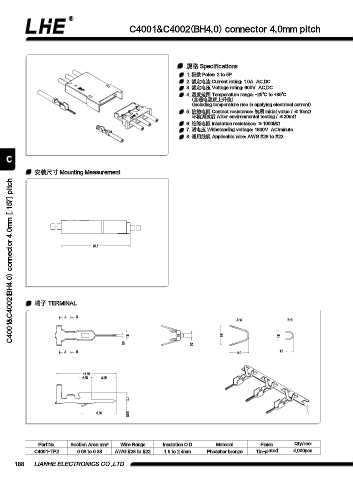

C4001&C4002(BH4.0) connector 4.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 5P
2. 额定电流 Current rating: 1.0A AC,DC
3. 额定电压 Voltage rating: 600V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1800V AC/minute
8. 适用线规 Applicable wire: AWG #28 to #22

C

安装尺寸 Mounting Measurement
C4001&C4002(BH4.0) connector 4.0mm [.157] pitch

20.5

端子 TERMINAL

A B
A-A B-B

1.8 3.6 1.6
0.5 0.7
A B 3.9 1.5

11.85
2.55 4.85

2.1

6.85 0.55

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4001-TP2 0.08 to 0.33 AWG #28 to #22 1.6 to 2.4mm Phosphor bronze Tin-plated 4,000pcs

188 LIANHE ELECTRONICS CO.,LTD.
