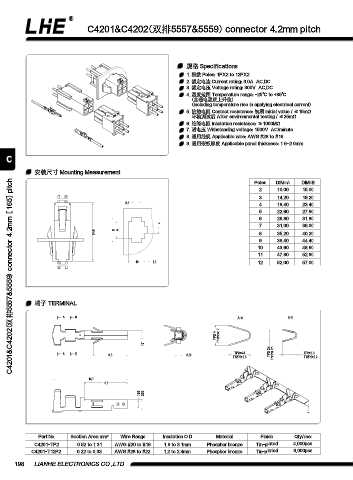

C4201&C4202(双排5557&5559) connector 4.2mm pitch

规格 Specifications
1. 极数 Poles: 1PX2 to 12PX2
2. 额定电流 Current rating: 9.0A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +85℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤15mΩ
环境测试后 After environmental testing / ≤25mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适用线规 Applicable wire: AWG #28 to #16
9. 适用嵌板厚度 Applicable panel thickness: 1.6~2.0mm
C

安装尺寸 Mounting Measurement
C4201&C4202(双排5557&5559) connector 4.2mm [.165] pitch
Poles DIM=A DIM=B
2 10.00 15.00
3 14.20 19.20
5.6 4 18.40 23.40
5 22.60 27.60
6 26.80 31.80
4
7 31.00 36.00
34.6 B A 8 35.20 40.20
9 39.40 44.40
10 43.60 48.60
11 47.80 52.80
10 1.6 12 52.00 57.00

端子 TERMINAL

A B A-A B-B

4
TP2= T12P2=2.7
1.7
2.4
A B 6.8 0.82 TP2= 4.4 TP2= T12P2=2.1 TP2= 2.9
T12P2=2.6 T12P2=2.2

14.7
8.6
1.65 2.05

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4201-TP2 0.52 to 1.31 AWG #20 to #16 1.9 to 3.1mm Phosphor bronze Tin-plated 4,000pcs
C4201-T12P2 0.22 to 0.33 AWG #28 to #22 1.2 to 2.4mm Phosphor bronze Tin-plated 9,000pcs

198 LIANHE ELECTRONICS CO.,LTD.
