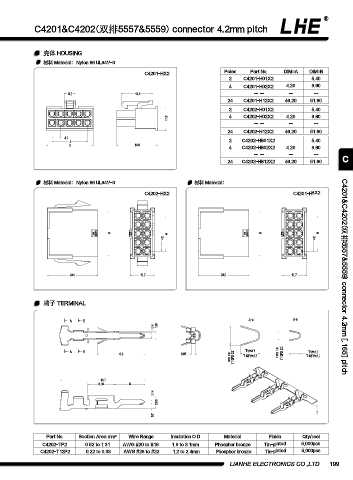

C4201&C4202(双排5557&5559) connector 4.2mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

C4201-HX2 Poles Part No. DIM=A DIM=B
2 C4201-H01X2 5 . 4 0
4 C4201-H02X2 4.20 9.60
5.3 14.8 -- -- -- --
24 C4201-H12X2 46.20 51.60
2 C4202-H01X2 5.40
11.6 4 C4202-H02X2 4.20 9.60
-- -- -- --
24 C4202-H12X2 46.20 51.60
4.2
A 2 C4202-HB01X2 5.40
B 19.5
4 C4202-HB02X2 4.20 9.60
-- -- -- --
24 C4202-HB12X2 46.20 51.60 C

材料 Material：Nylon 66 UL94V-0 材料 Material：
C4202-HX2 C4201-HBX2

B A B A
4.2 4.2

23.9 11.7 23.9 11.7 C4201&C4202(双排5557&5559) connector 4.2mm [.165] pitch

端子 TERMINAL

A B A-A B-B
1.14 1.75

A B TP2=3.7 TP2=1.9 TP2= 2.3
9.4 0.85 3.8 T12P2=2.6 T12P2=2.1 T12P2=2.2
TP2= T12P2=2.7

16.7
5.35 6
1.14
2.53

0.7

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4202-TP2 0.52 to 1.31 AWG #20 to #16 1.9 to 3.1mm Phosphor bronze Tin-plated 5,000pcs
C4202-T12P2 0.22 to 0.33 AWG #28 to #22 1.2 to 2.4mm Phosphor bronze Tin-plated 5,000pcs

LIANHE ELECTRONICS CO.,LTD. 199
