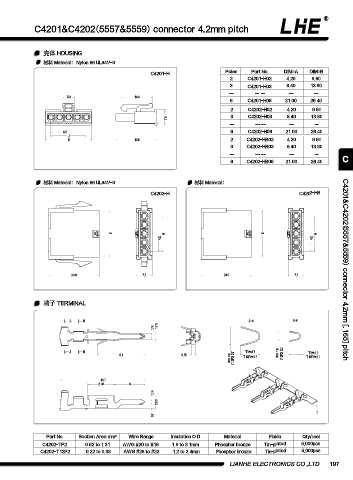

C4201&C4202(5557&5559) connector 4.2mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

C4201-H Poles Part No. DIM=A DIM=B
2 C4201-H02 4.20 9.60
3 C4201-H03 8.40 13.80
-- -- -- -- --
5.3 14.8
6 C4201-H06 21.00 26.40
2 C4202-H02 4.20 9.60
7.4 3 C4202-H03 8.40 13.80
-- -- -- -- --
6 C4202-H06 21.00 26.40
4.2
A
B 19.5 2 C4202-HB02 4.20 9.60
3 C4202-HB03 8.40 13.80
-- -- -- -- --
6 C4202-HB06 21.00 26.40 C

材料 Material：Nylon 66 UL94V-0 材料 Material：
C4202-H C4202-HB

B A B A
4.2 4.2

23.9 7.5 23.9 7.5 C4201&C4202(5557&5559) connector 4.2mm [.165] pitch

端子 TERMINAL

A B A-A B-B
1.14 1.75

A B TP2=3.7 TP2= 2.3
9.4 0.85 3.8 T12P2=2.6 TP2=1.9 T12P2=2.1 T12P2=2.2
TP2= T12P2=2.7

16.7
5.35 6
1.14
2.53

0.7

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C4202-TP2 0.52 to 1.31 AWG #20 to #16 1.9 to 3.1mm Phosphor bronze Tin-plated 5,000pcs
C4202-T12P2 0.22 to 0.33 AWG #28 to #22 1.2 to 2.4mm Phosphor bronze Tin-plated 5,000pcs

LIANHE ELECTRONICS CO.,LTD. 197
