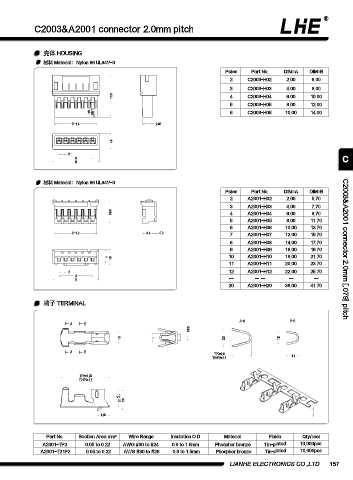

C2003&A2001 connector 2.0mm pitch

壳体 HOUSING
材料 Material：Nylon 66 UL94V-0

Poles Part No. DIM=A DIM=B
2 C2003-H02 2.00 6.00
3 C2003-H03 4.00 8.00
12.5 4 C2003-H04 6.00 10.00
5 C2003-H05 8.00 12.00
6 C2003-H06 10.00 14.00

B-1.4 2.85

4.8

2
A C
B

材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A2001-H02 2.00 5.70
3 A2001-H03 4.00 7.70
6.95 4 A2001-H04 6.00 9.70
5 A2001-H05 8.00 11.70
6 A2001-H06 10.00 13.70
B-1.2 3.4 0.3 7 A2001-H07 12.00 15.70
8 A2001-H08 14.00 17.70
9 A2001-H09 16.00 19.70 C2003&A2001 connector 2.0mm [.079] pitch
4 10 A2001-H10 18.00 21.70
4.6
11 A2001-H11 20.00 23.70
2 12 A2001-H12 22.00 25.70
A
B -- -- -- -- --
20 A2001-H20 38.00 41.70

端子 TERMINAL

A-A B-B
A B
0.65
1.5 1 2.5 1.6

A B TP2=2.6
T21P2= 2.5 1.4

TP2= 5.75
T21P2=5.5

2.1 - 0.1 2.5
0
+
1.45

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2001-TP2 0.05 to 0.22 AWG #30 to #24 0.9 to 1.5mm Phosphor bronze Tin-plated 10,000pcs
A2001-T21P2 0.05 to 0.22 AWG #30 to #26 0.9 to 1.5mm Phosphor bronze Tin-plated 10,000pcs

LIANHE ELECTRONICS CO.,LTD. 157
